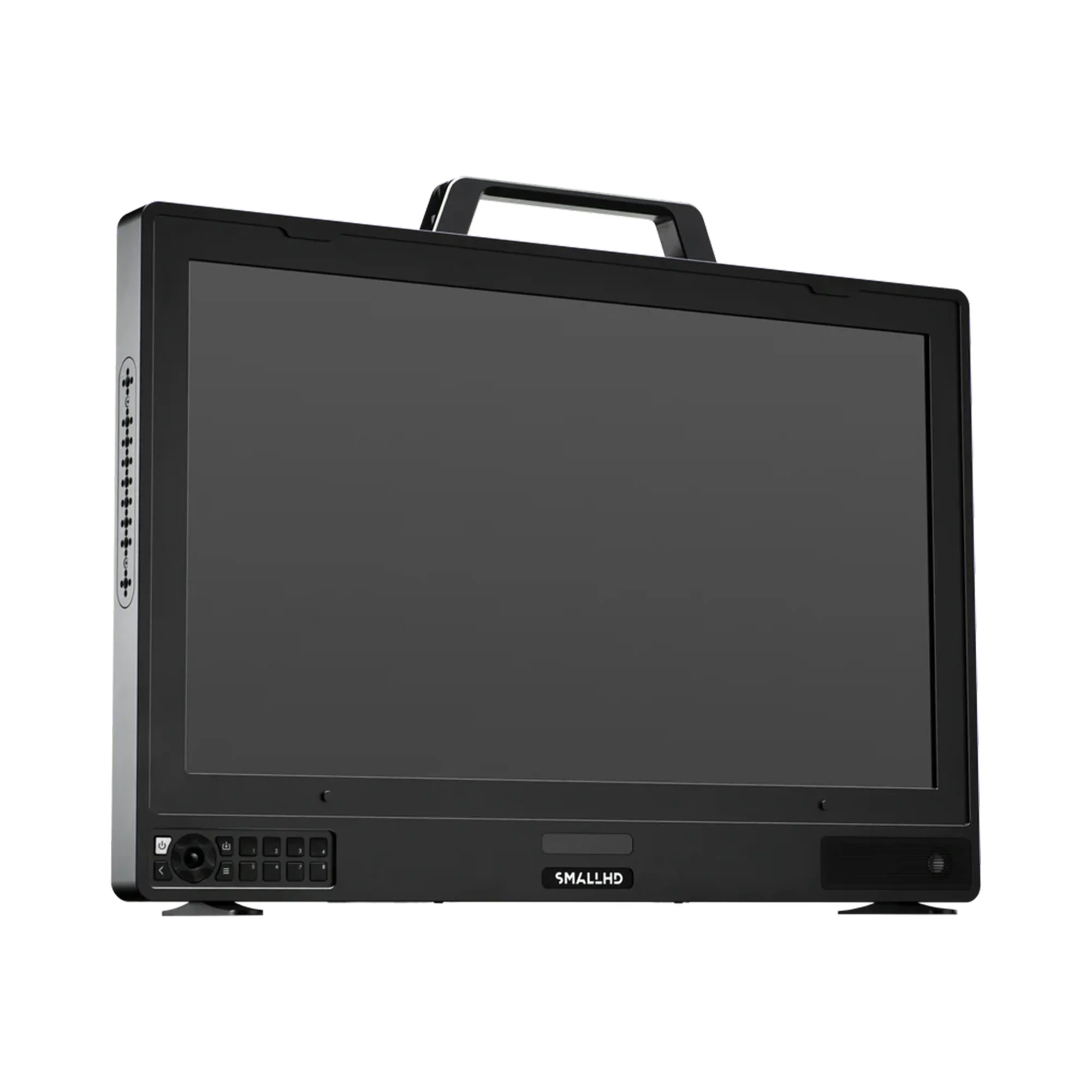

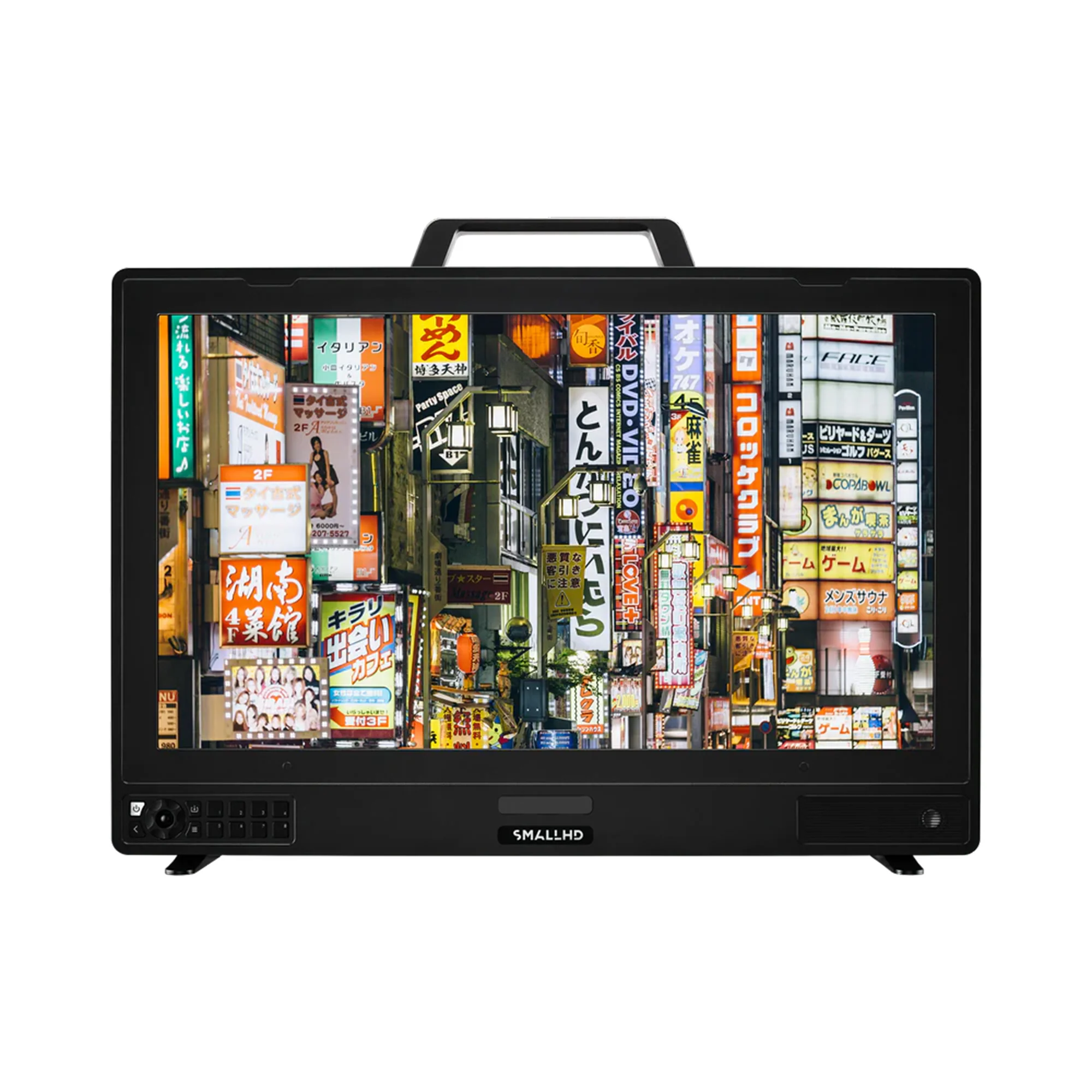

SmallHD Cine 24" 4K High-Bright Monitor

SmallHD Cine 24" 4K High-Bright Monitor

Let there be BRIGHT.

Cine 24 brings 4K, daylight-viewable monitoring everywhere. Lightweight for faster setup and teardown, this monitor is the all-around solution as a director’s monitor or for production and broadcast video villages. Cine 24 is SmallHD’s ultimate production workhorse.

The Cine 24” 4K High-Bright Monitor offers 1350 nits of sustained brightness, enabling clear viewing in bright daylight environments, which eliminates the need for a sun hood or viewing tent. The 24-inch screen, the largest in our Cine series, features a 3840x2160 resolution as well as 10-bit color depth and 100% DCI-P3 color gamut for color-accurate images.

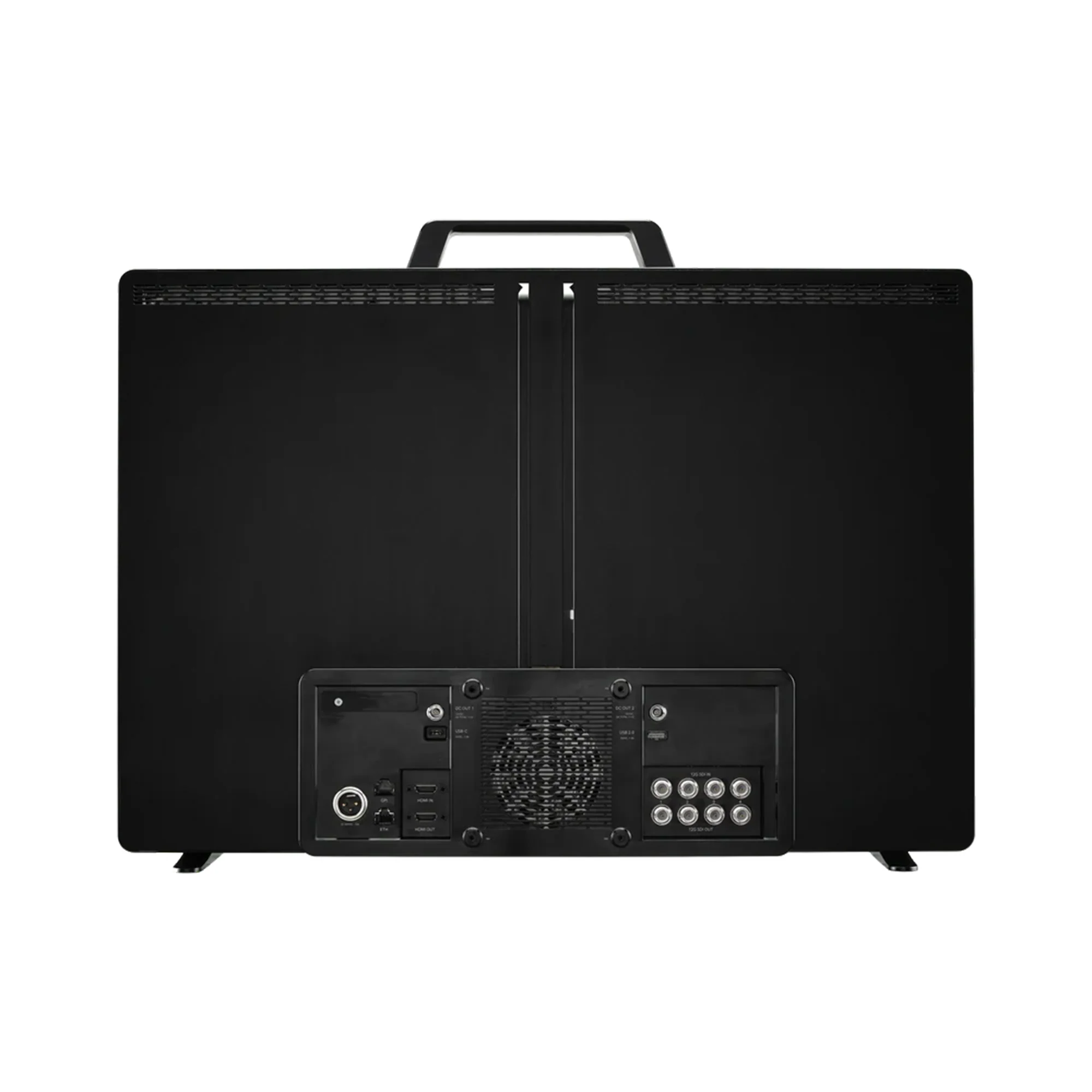

Cine 24 features four 12G SDI inputs and outputs as well as one HDMI 2.0 input. The Unibody Smart Chassis offers a Dovetail Mounting Rail for battery and accessory mounting, interchangeable mounting points, and 2x 2-pin accessory power outputs. Hot-swappable dual inputs allow you to add on Gold Mount or V-Mount battery plate attachments.

Meet Our Smart PageOS Software

With the power of SmallHD PageOS software, build customized Page Profiles, and utilize all of the dependable SmallHD features such as personalized frame guides, Focus & Exposure Assist, high-resolution 3D LUT overlays, histogram, vectorscope, waveform, and more.

Features:

• Display: 24.1" 3840x2160
• Backlight Type: Edgelit LCD
• Brightness: 1350nits
• SDI: 4x 12G-SDI in, 4x 12G-SDI out
• HDMI: 1x HDMI In, 1x HDMI Out
• Power Input: 1x 3-pin XLR (12V-34V, 12A)

Compatible With:

Accessories (Sold Separately):

• Dual V-Mount Battery Bracket (14v/26v) for SmallHD 4K Monitors (PWR-ADP-BB-4K-DUALVM)
• Dual Gold-Mount Plus Battery Bracket (14v/26v) for SmallHD 4K Monitors (PWR-ADP-BB-4K-DUALGM)
• C-stand mount with VESA compatibility (ACC-MT-CSTAND)
• 24" Sunhood for Cine 24 and Vision 24 (ACC-HOOD-4K-24)
• 4K HDMI to 4K HDMI Cable (120in/305cm) (CBL-SGL-HDMI-4K-120)
• 4K HDMI to 4K HDMI Cable (36in/90cm) (CBL-SGL-HDMI-4K-36)
• 1/4-20 Cheese Stick for SmallHD 4K Monitors (ACC-MT-STICK-STANDARD)
• Blank Cheese Stick for SmallHD 4K Monitors (ACC-MT-STICK-BLANK)
• Combination Cheese Stick for SmallHD 4K Monitors (3/8 & 1/4-20) (ACC-MT-STICK-COMBO)
• 2-pin to 2-pin Power Cable (18in/45cm) (CBL-PWR-2PIN-2PIN-18)
• Custom Case for Cine 24 (ACC-CASE-4K-24C)
• Rack Mount for Cine 24 (ACC-MT-RACK-CINE-24)
• Cheese Plate for SmallHD 4K Monitors (17-5043)
• Ultra QR Articulating Monitor Mount (Baby Pin, C-Stand) (WC-A20003)
• Premium Monitor Handle for 4K Monitors (17-5413)
• SmallHD 4K Monitor Feet (Set) (ACC-MT-FEET-4K)
• V-Mount Accessory Pack for Cine 24 (ACC-CINE24-VM-PACK)
• Gold-Mount Accessory Pack for Cine 24 (ACC-CINE24-GM-PACK)
• Cine 24 Transport Screen Protector (17-1065)
• CS Desk Mat with Magnetic Strip (WC-P00206)
• 4K Series PSU Universal Mounting Bracket (17-5001)

Product SKU:

MON-CINE-24

In The Box:

SmallHD Cine 24" 4K High-Bright Monitor
SmallHD Cleaning Cloth (ACC-CLOTH-SMALLHD)
24V Power Supply (OLED 22, Cine 24, Vision 17) (PWR-ADP-XLR-3PIN-24V-10.4A-V2)
Premium Monitor Handle for 4K Monitors (17-5413)
SmallHD 4K Monitor Feet (Set) (ACC-MT-FEET-4K)
Cine 24 Transport Screen Protector (17-1065)
