ProMaster MR1 Macro Focusing Rail with Quick Release Plate

ProMaster MR1 Macro Focusing Rail with Quick Release Plate

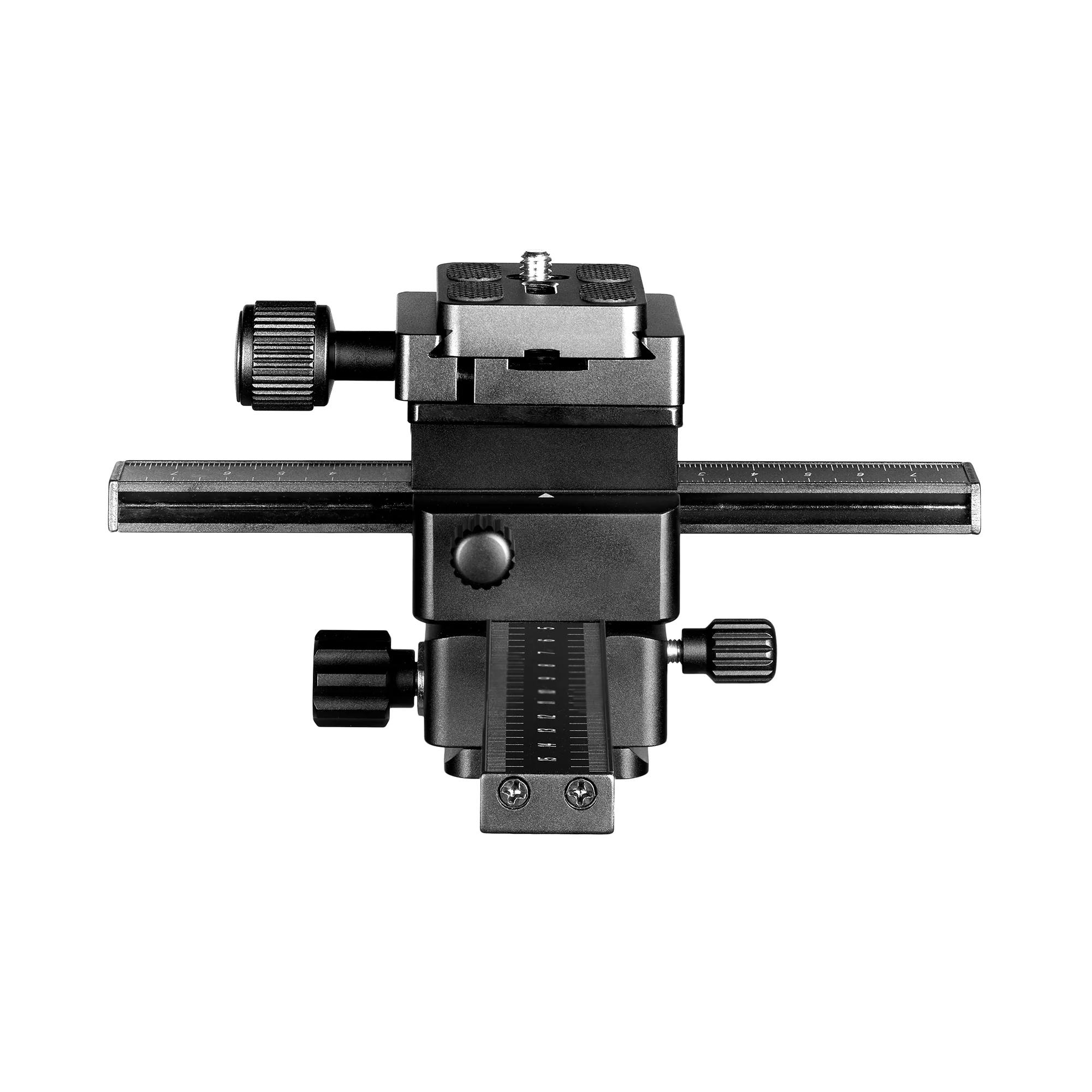

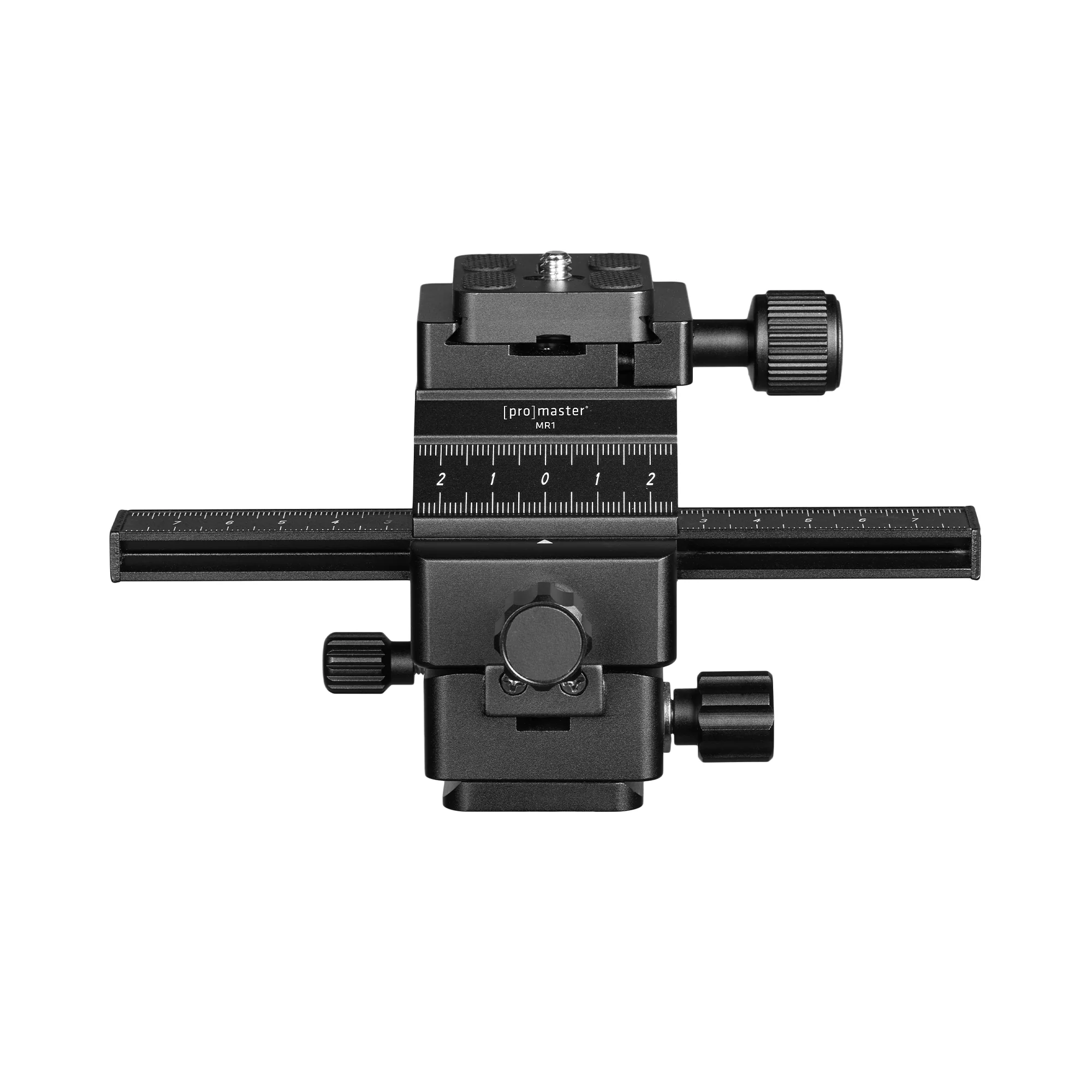

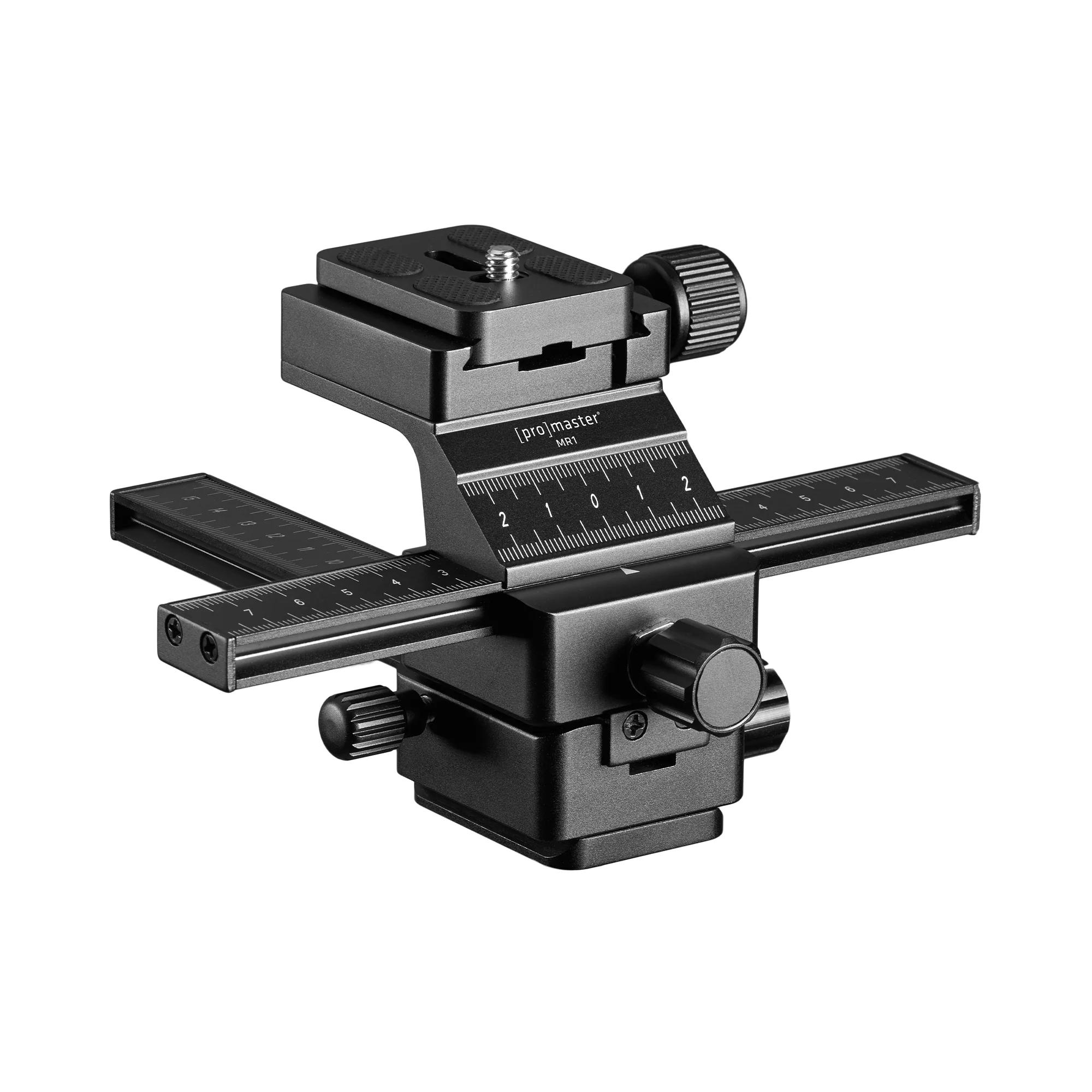

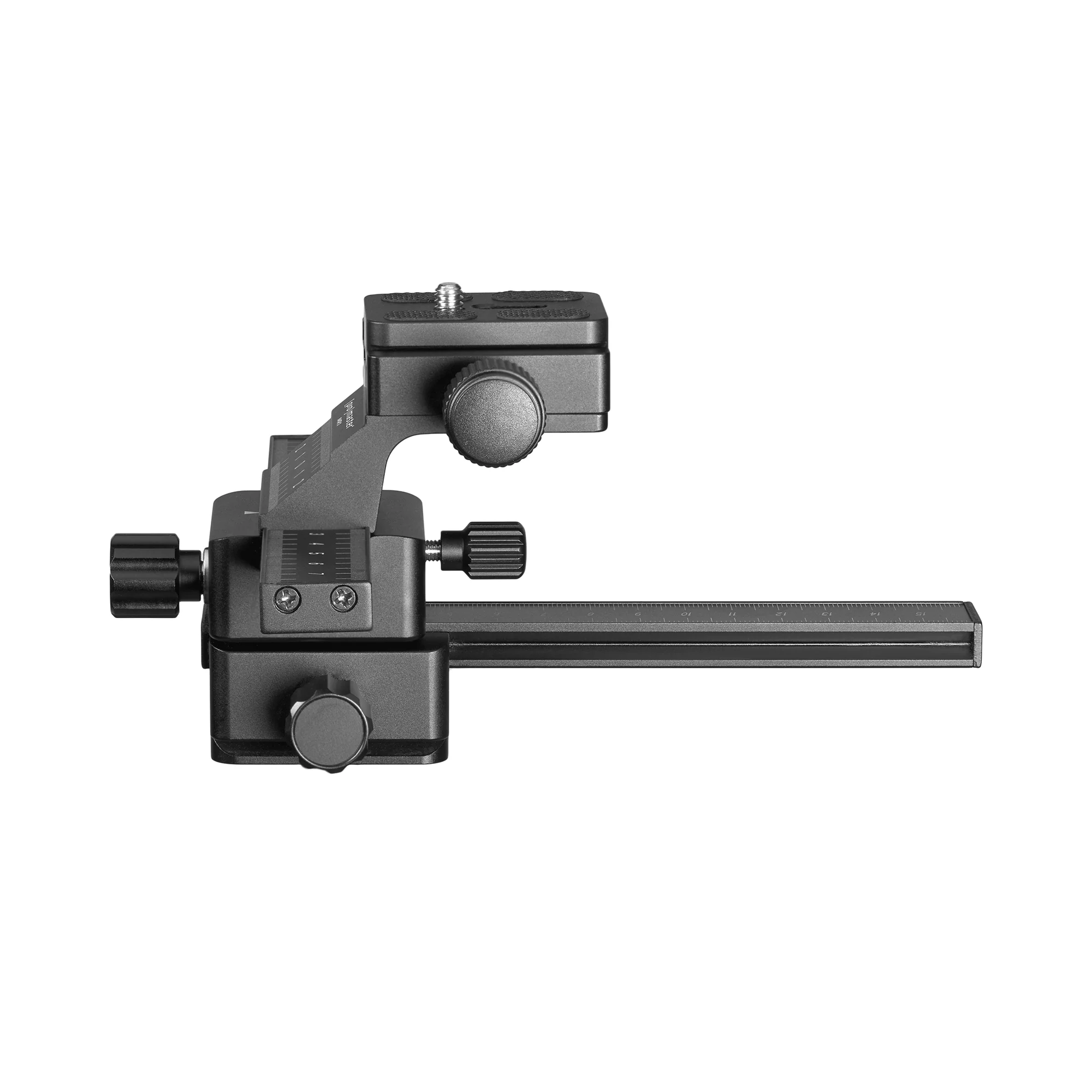

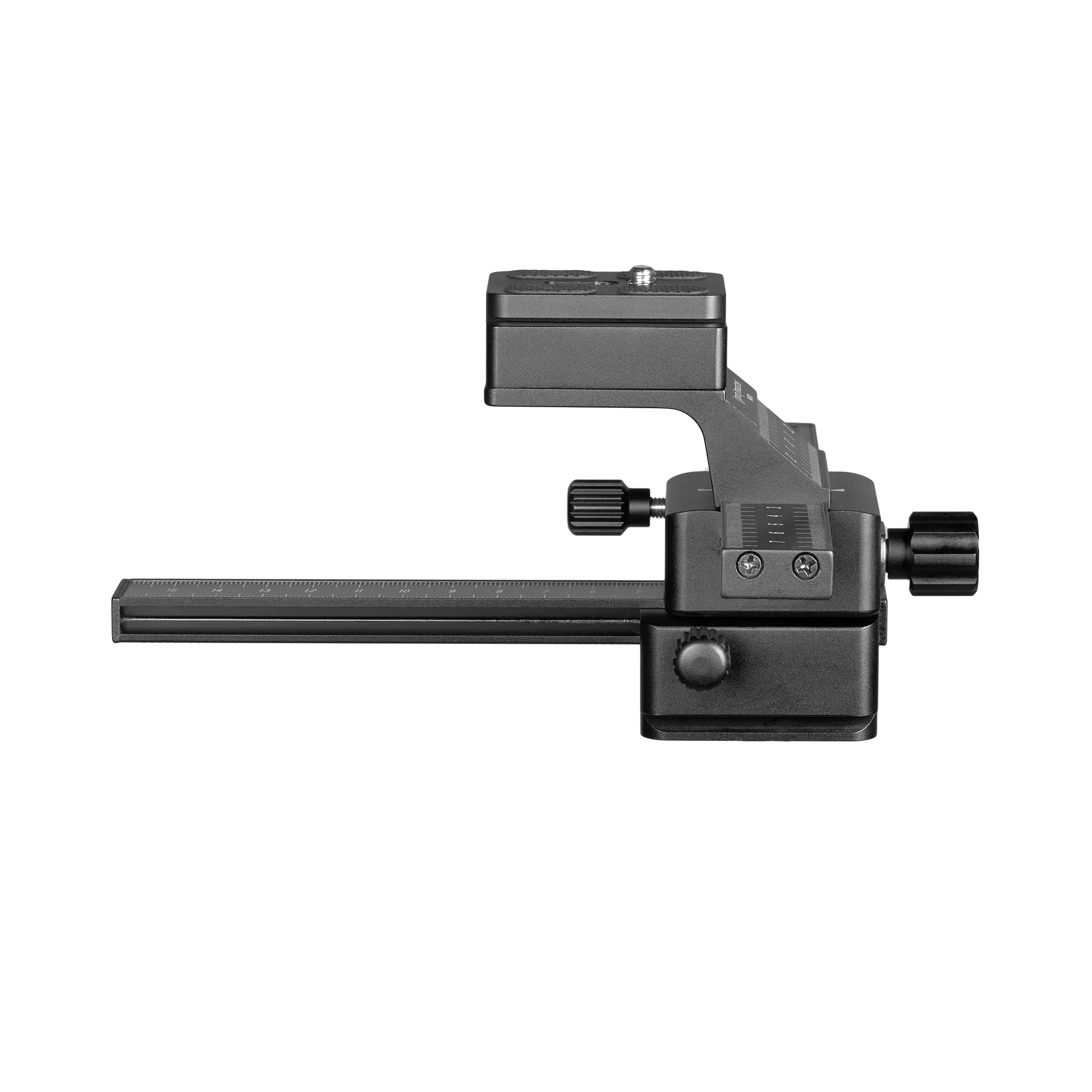

Frame your subjects and focus your camera with ultimate precision using the ProMaster MR1 Macro Focusing Rail. Its X/Y design gives you the freedom to move your camera front to back and side to side using gear-driven controls. Lock-down knobs keep your camera steady when you are ready to press the shutter button. The MR1 features the ProMaster dovetail quick release system (compatible with arca-swiss type dovetail products) for rapid attachment to a tripod (with matching receiver) as well as your camera.

Features:

• Dovetail quick release plate
• Quick release receiver
• Quick release receiver clamping knob
• Focusing rail top plate
• Quick release receiver lock-down screw holes
• X axis scale
• Y axis scale
• X axis control knob
• X axis lock-down knob
• Y axis control knob
• Y axis lock-down knob
• Focusing rail base

Using the controls to operate the focusing rail

Loosen the X axis lock-down knob and then rotate the X axis control knob either direction to move your camera side to side. Do the same with the Y axis lock-down knob (and Y axis control knob (10) to achieve a front-to-back movement. For best results tighten the lock-down knobs before taking a picture.

Compatible With:

Tripod Plates:

• ProMaster Dovetail Quick Release Plate

Dimensions:

7.3 x 6.5 x 3.5" (LxWxH)

Weight:

1.44 lbs

Product SKU:

6095

In The Box:

ProMaster MR1 Macro Focusing Rail
ProMaster Dovetail Quick Release Plate
2 Mounting Screws
Allen Wrench
Limited 1-Year Manufacturer Warranty

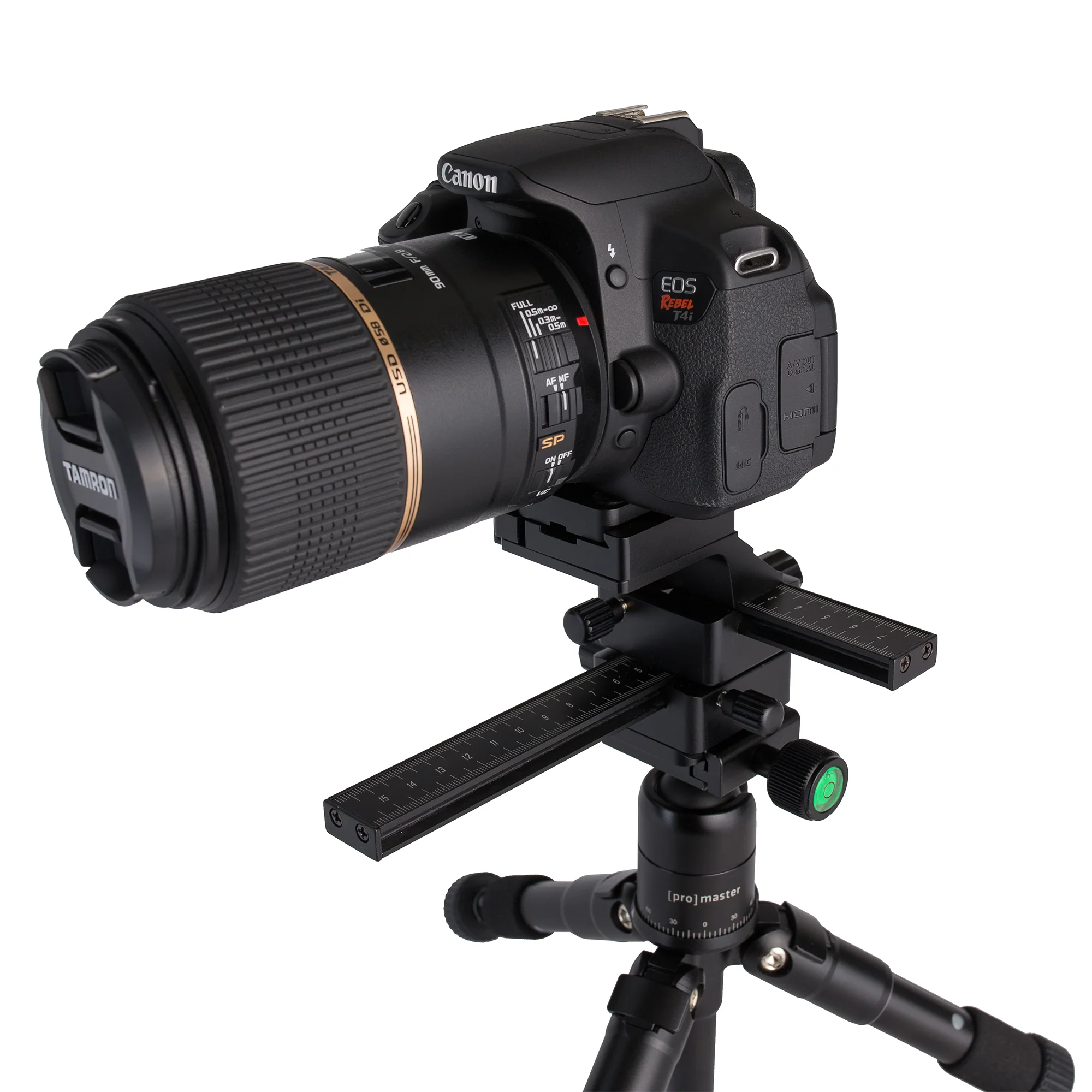

Note: Always mount the focus rail to a tripod BEFORE attaching your camera to the focus rail.
