Portkeys LH7C 7" Full HD Monitor with Camera Control
Portkeys LH7C 7" Full HD Monitor with Camera Control

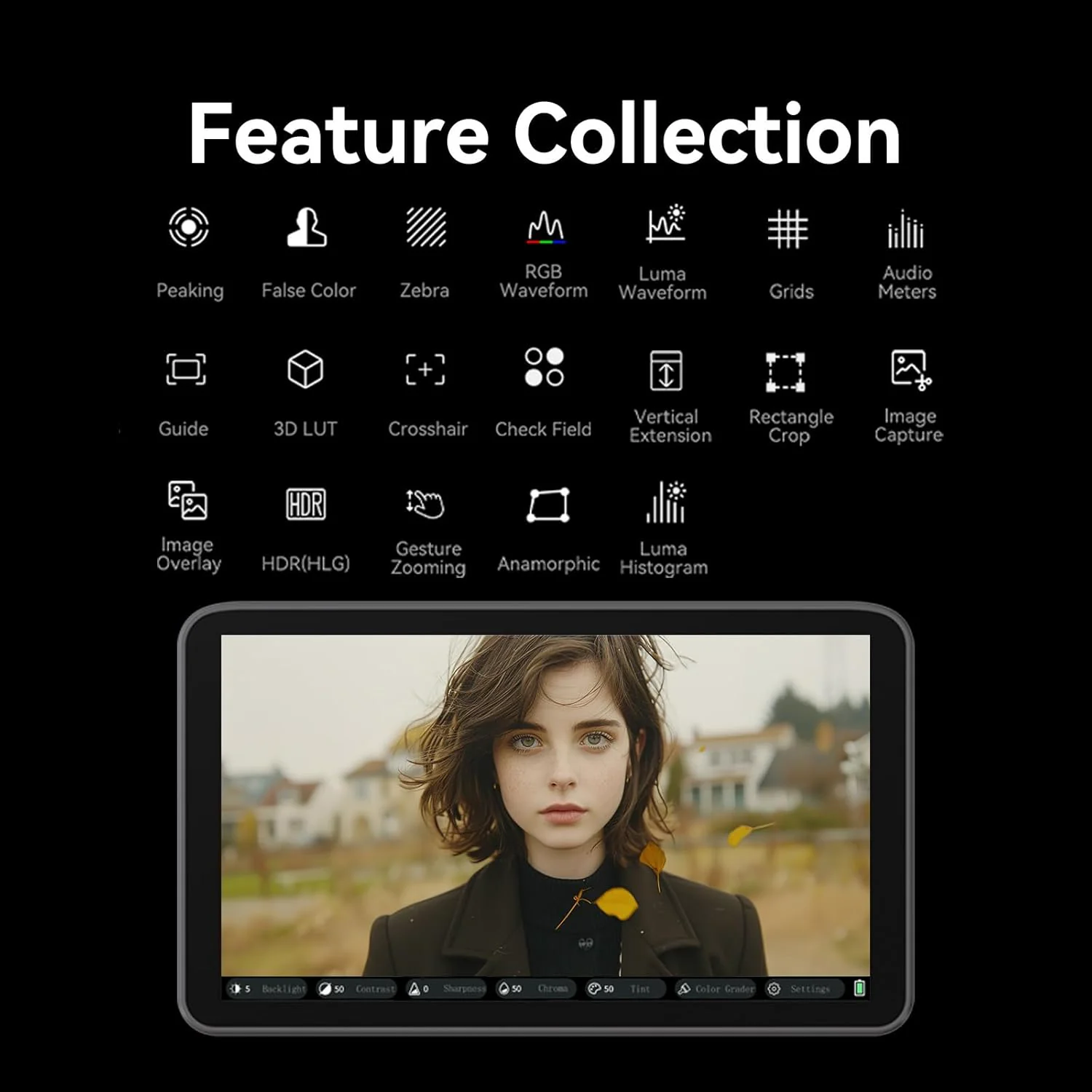

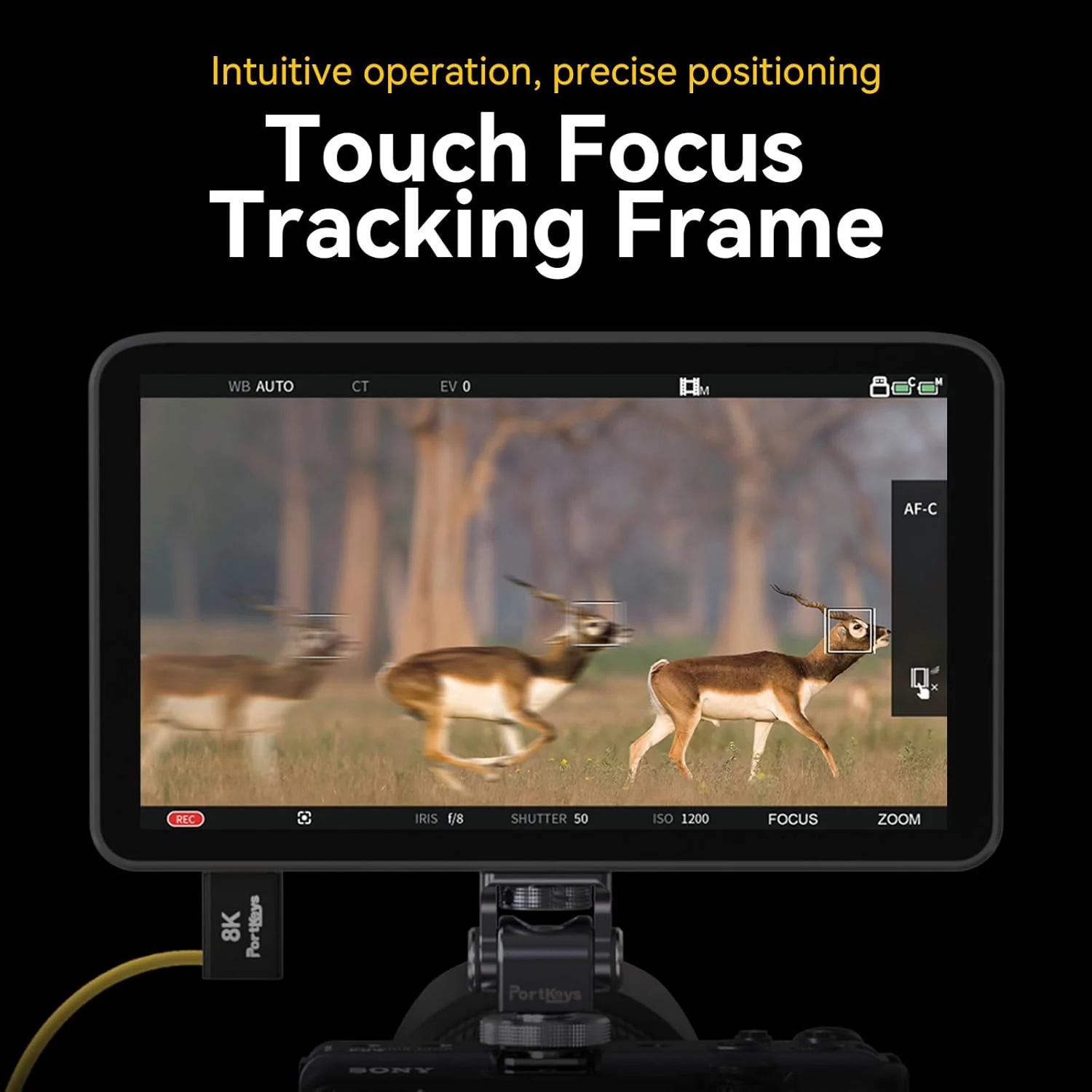

The LH7C is a compact, high‑brightness 1000‑nit on‑camera monitor built for professional filmmaking. It offers essential monitoring tools like peaking, false color, waveforms, audio meters, guides, and real‑time 3D LUT output for accurate color grading. With anamorphic de‑squeeze, touch‑focus tracking, freeze‑frame tools, and gesture zooming, it delivers fast, intuitive control on set. The LH7C supports 4K30p input with 1080p60 output and works with the TA03Y HDMI control cable for integrated monitoring and camera control—even up to 8K compatibility. A powerful, versatile monitor for creators who need precision in the field.
Features:
- Seamless Camera Control via Touchscreen Wired Camera Control for S0NY A1/A9 II/A7S III/A7M IV/FX3/FX30/A9M3, CAN0N EOS R1/R5 Mark II/R6 Mark III, PANAS0NIC S1/G9/GH7/GH6/S1H/S1R/GH5 II/S5/S5M2/S5M2X/BGH1/BS1H

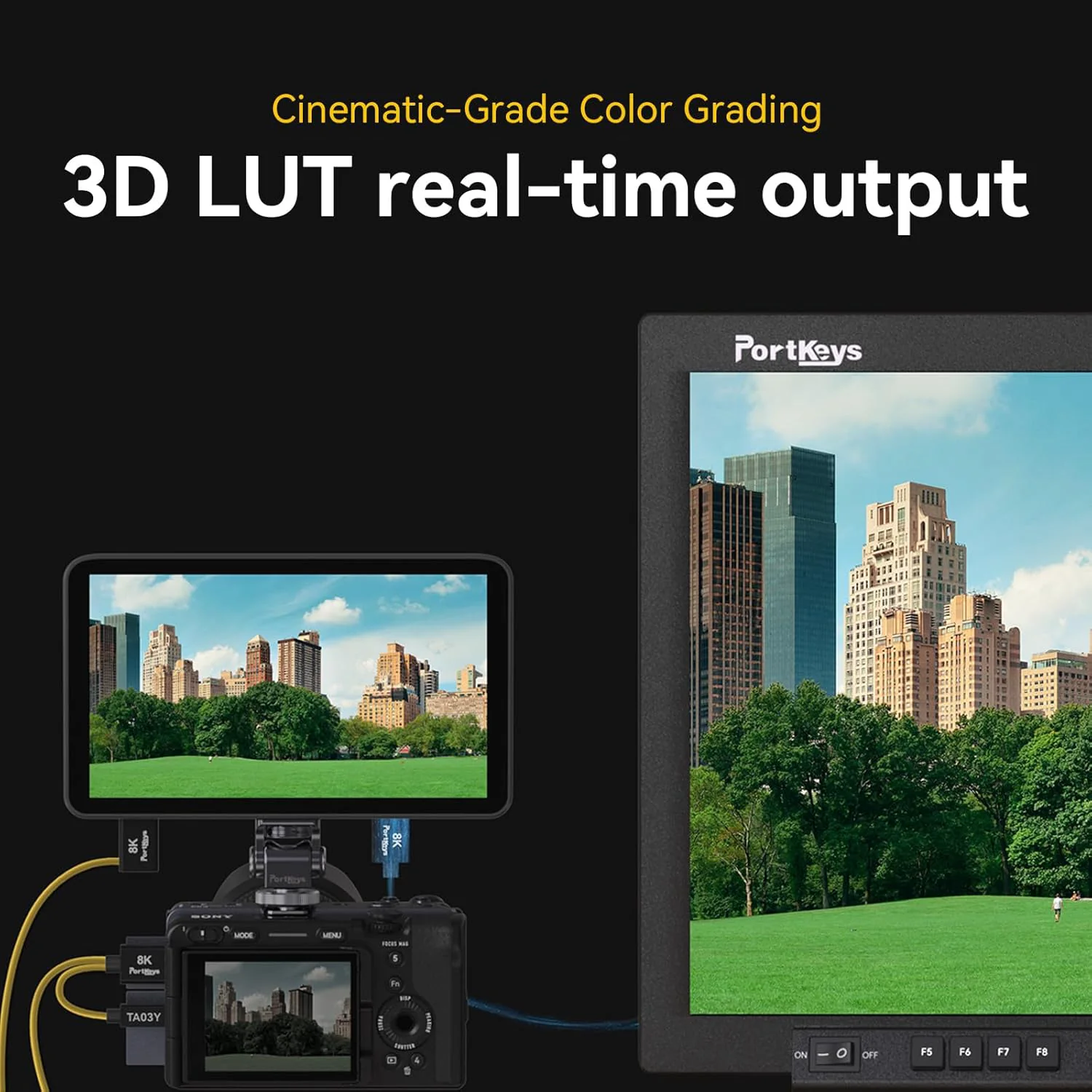

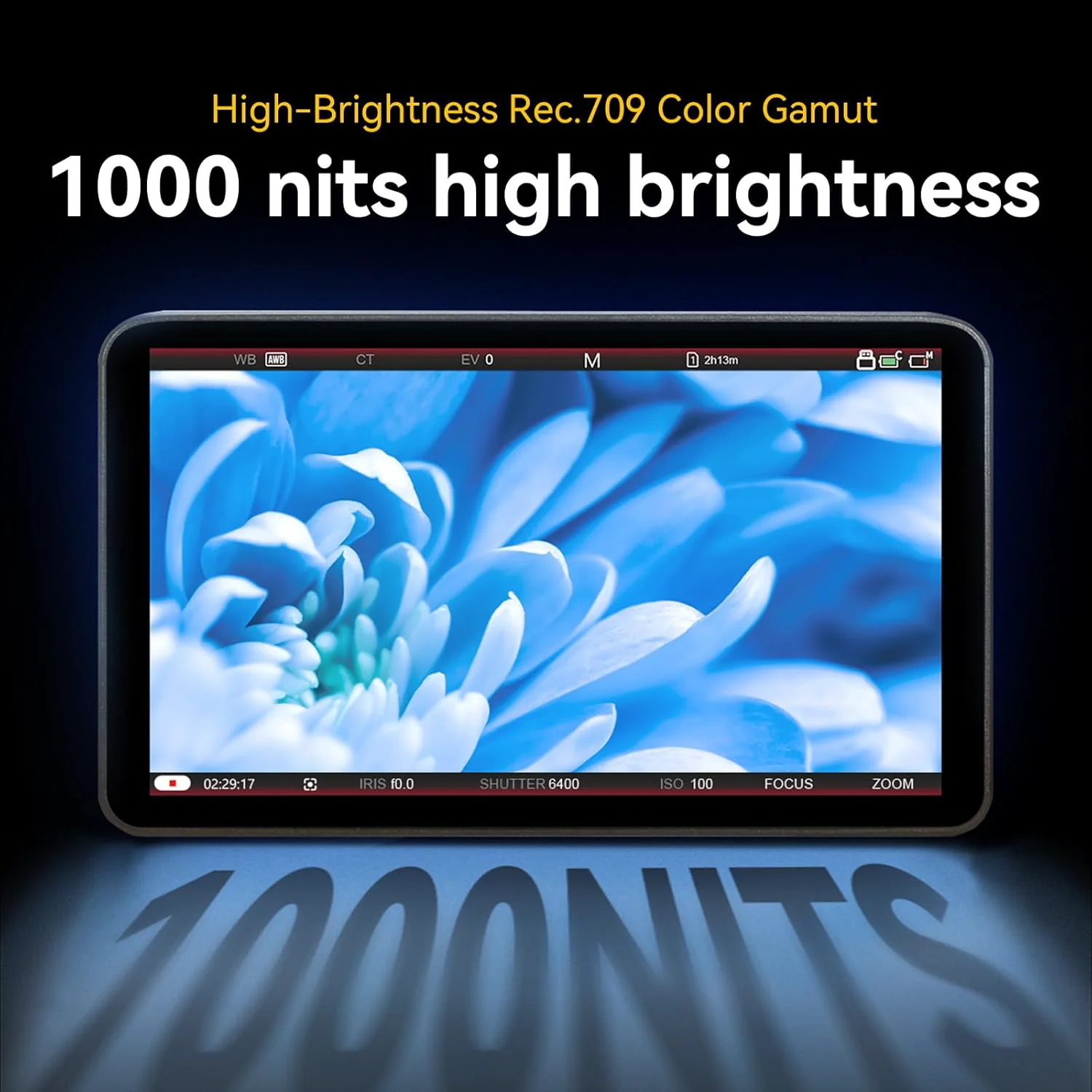

- 10-Bit Color & 3D LUT Output The 7-inch 1000 nits IPS panel supports 10-bit (8+2 FRC) color depth for smooth gradients. Supports loading up to 20 custom 3D LUTs via USB. Crucially, it features HDMI 3D LUT Output, allowing you to send the color-graded signal to a wireless transmitter or director's monitor for consistent team monitoring

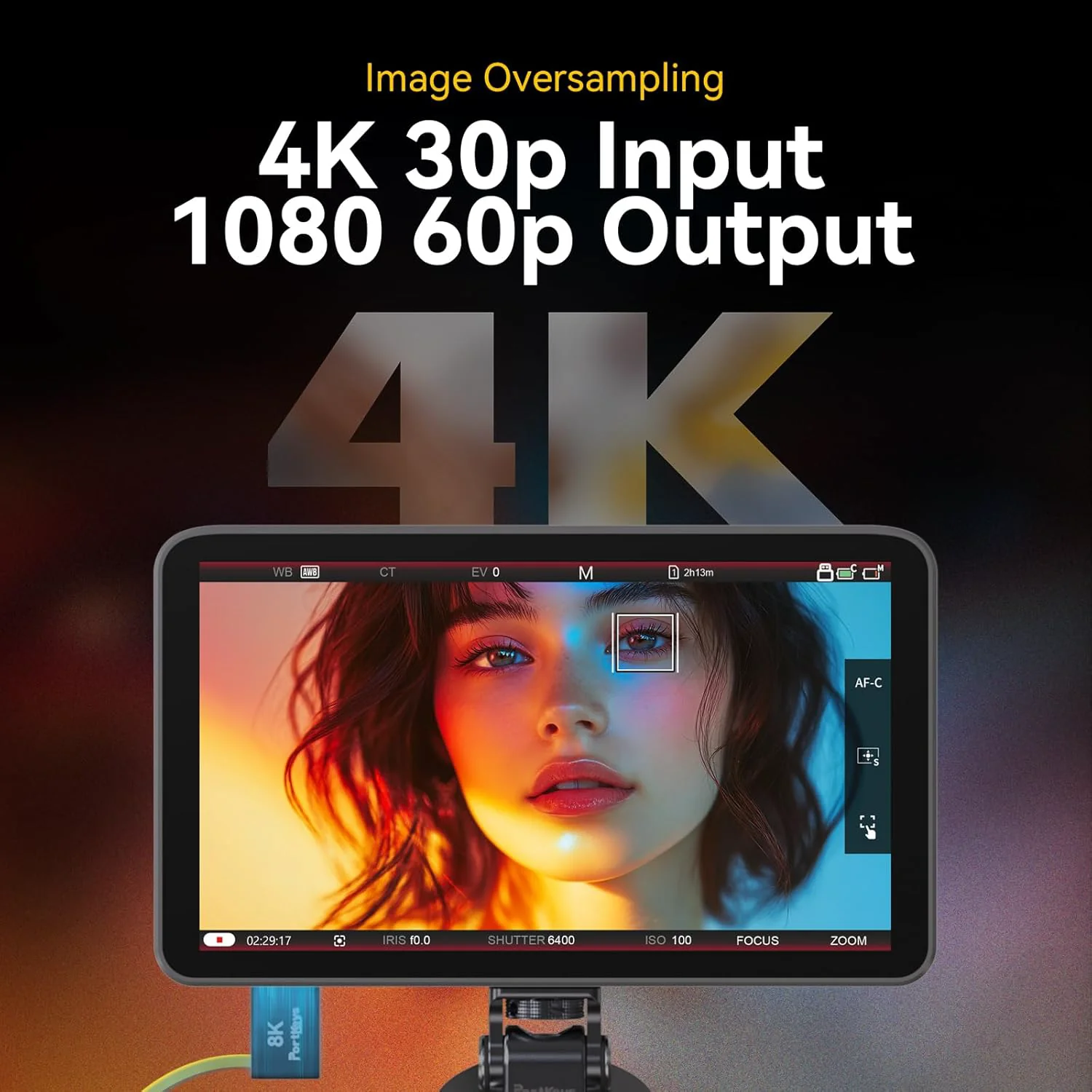

- 2-in-1 Cable & 4K Input Support Includes the custom TA03Y HDMI Control Cable, combining video and Type-C control into a single 2.5mm wire rated for 8K signal stability. The monitor leverages this high-bandwidth connection to accept 4K 30P lossless input (downscaled to 1080P via oversampling), ensuring pristine image details without the cable clutter of traditional setups
- Freeze Frame with Overlay Comparison Capture and store reference frames on USB drive, then overlay them semi-transparently with live video for precise shot matching. Perfect for maintaining continuity between takes, matching actor positions, and recreating complex compositions frame-by-frame

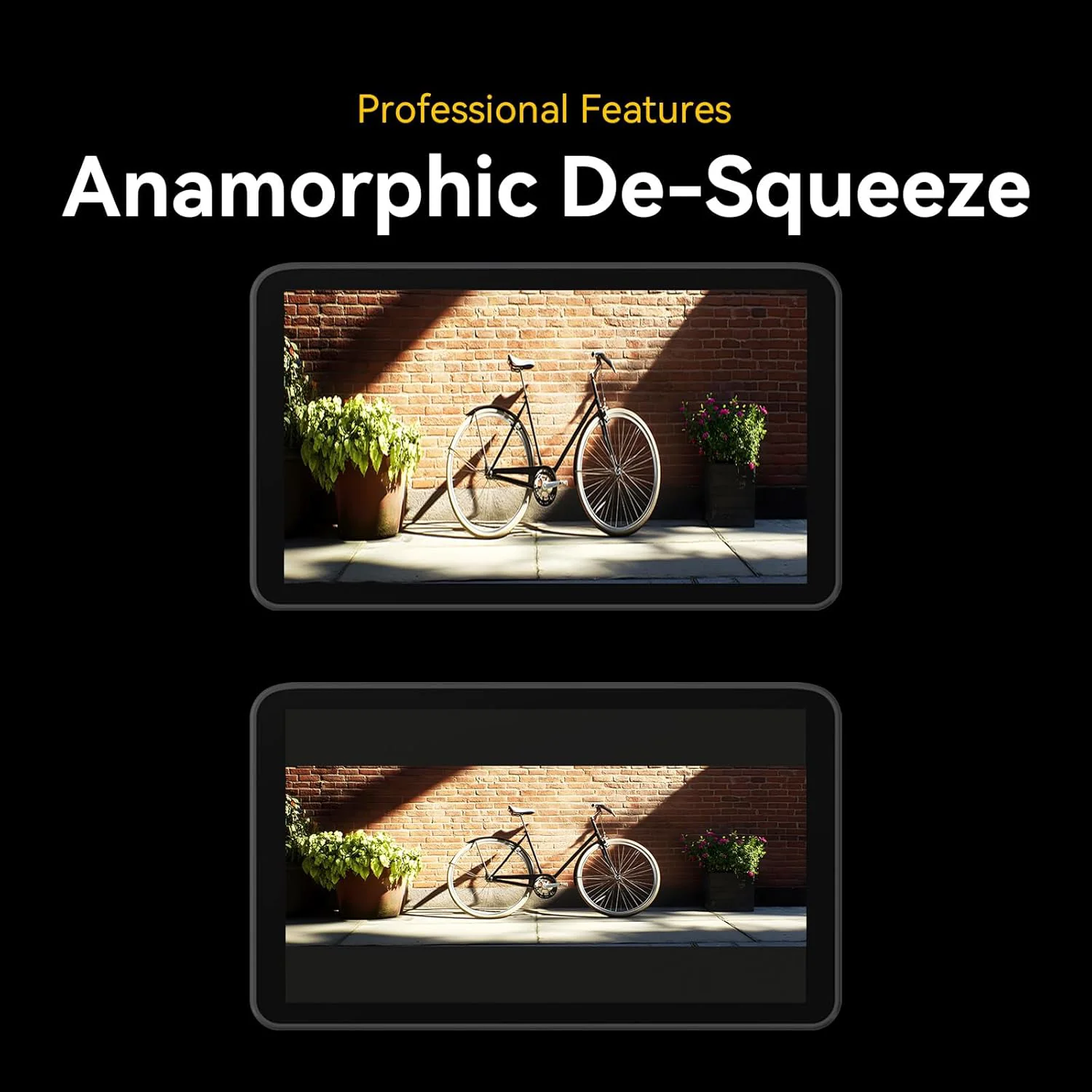

- Anamorphic De-Squeeze Preset 10 Sizes: 1.00x/1.33x/1.42x/1.50x/1.60x/1.66x/1.80x/1.85x/2.00x/2.35x, customizable from 0.25x to 4.00x
-

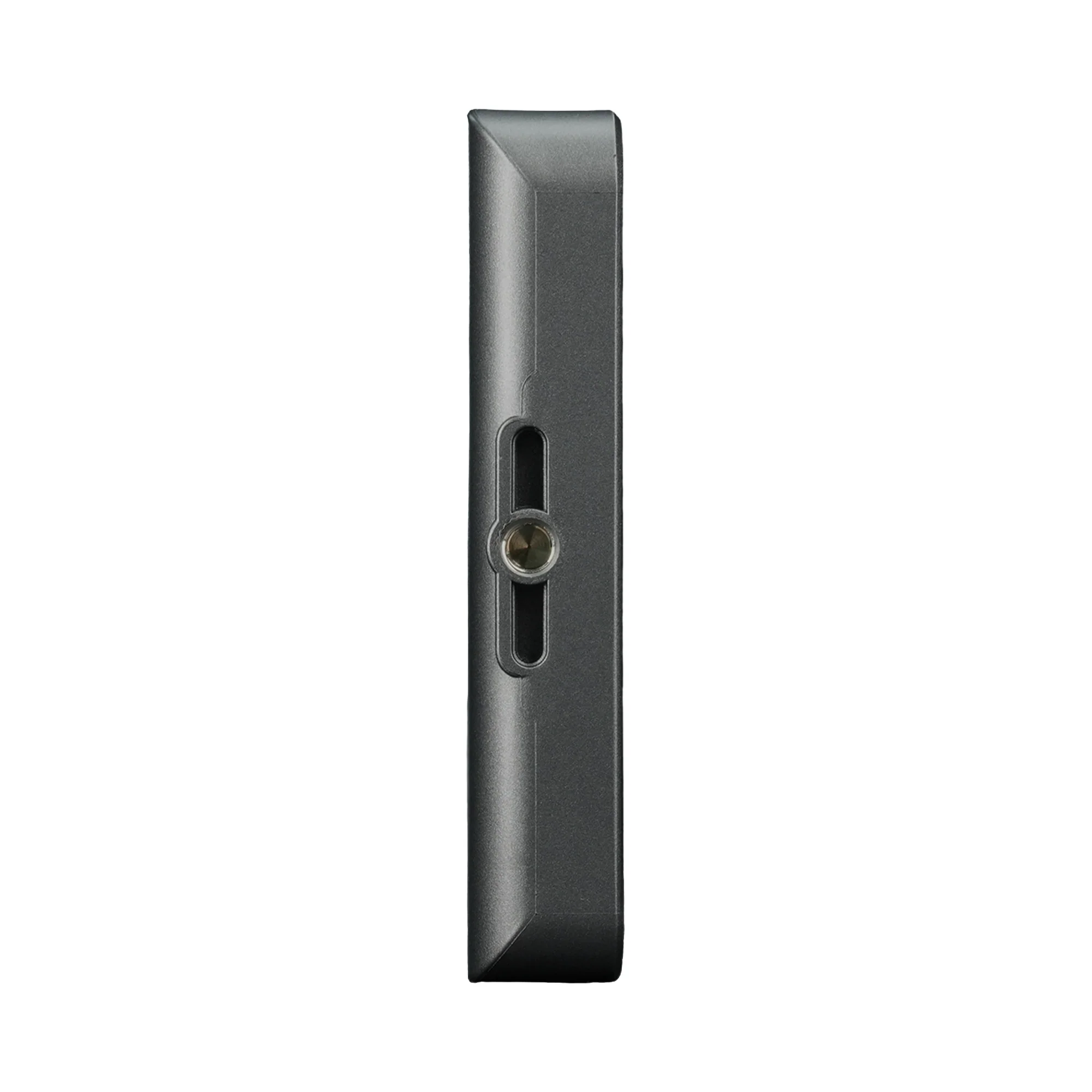

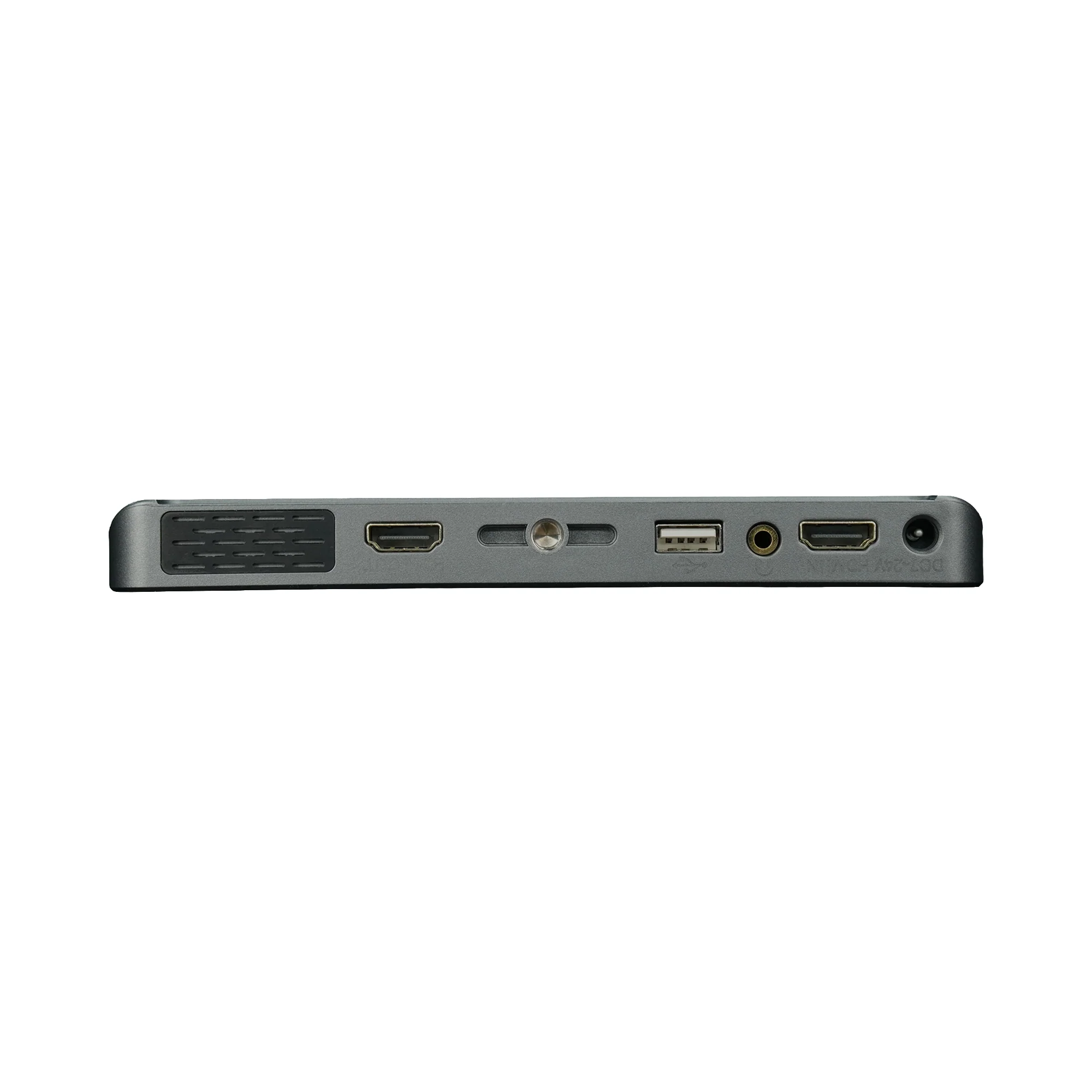

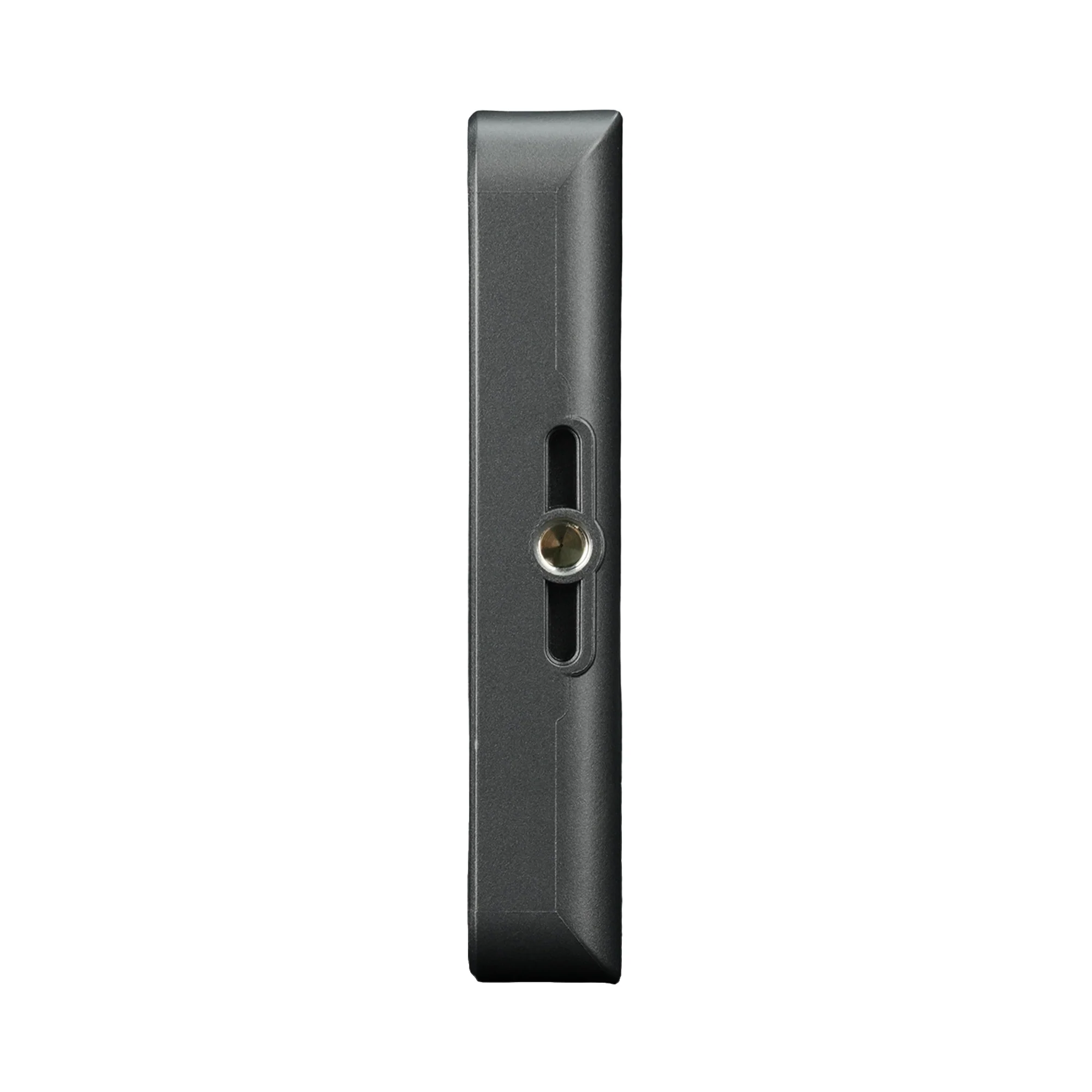

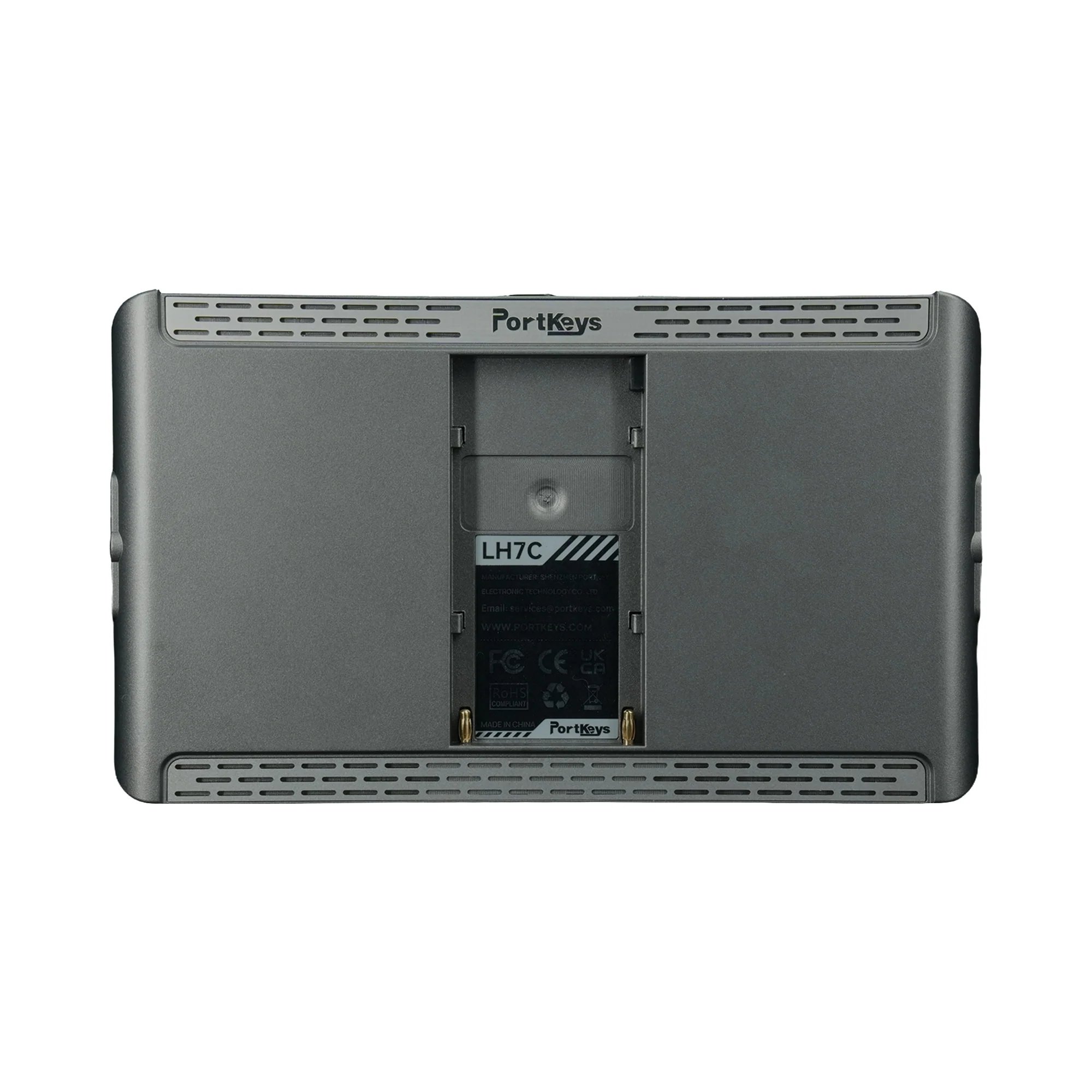

Lightweight and Rig-Ready Design Weighs only 245g with a high-density engineering plastic housing, ~30% lighter than standard 7" monitors. Power via NP-F battery plate or 7-24V DC input. Features a USB-A port for firmware/LUTs and 1/4"-20 mounting threads for flexible setup on cages or gimbals (Battery not included)
Dimensions:
TBD
Weight:
0.54 lbs
Manufacturer SKU:
LH7C

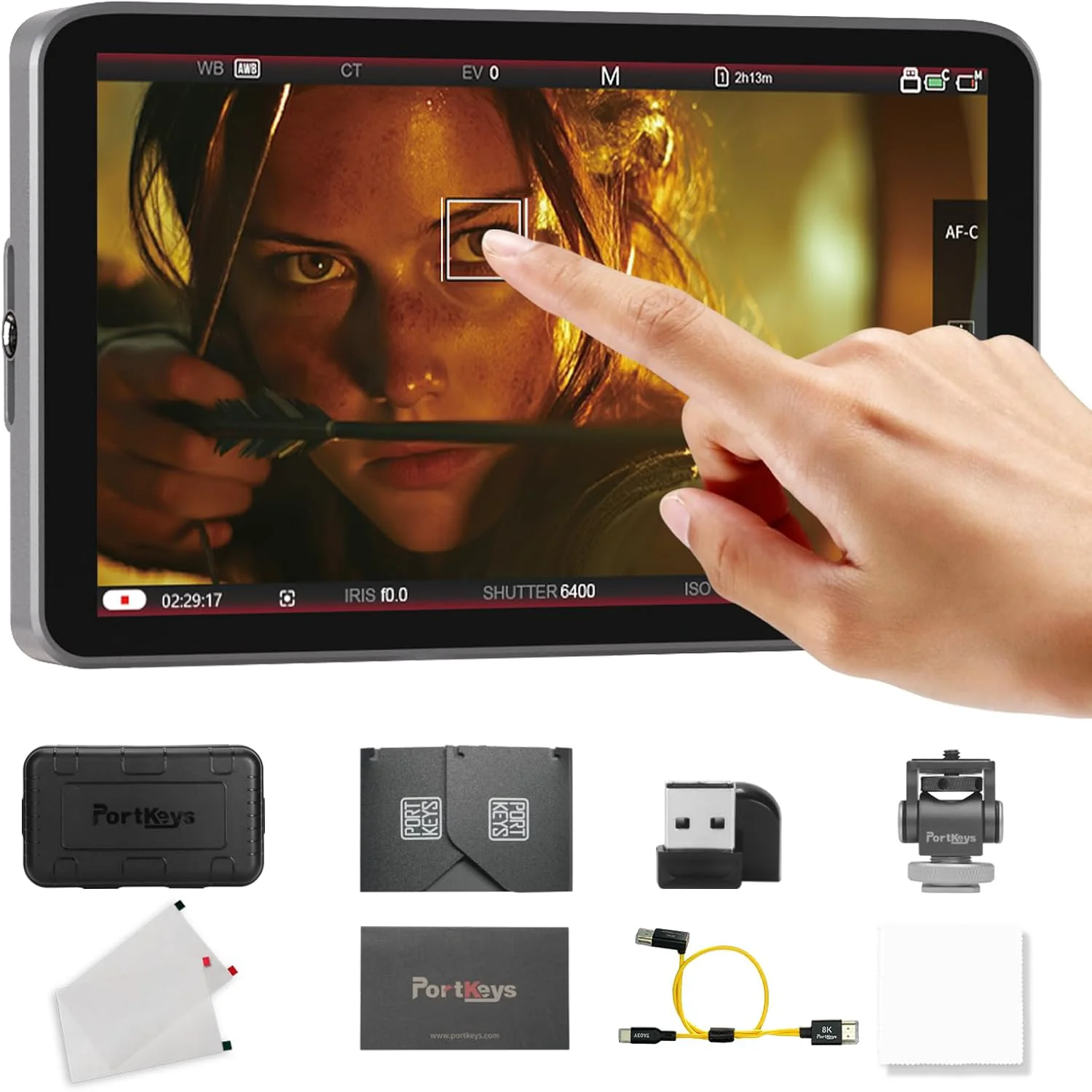

In The Box:
Portkeys LH7C 7" Full HD Monitor with Camera Control
TA03Y Video Control Cable (HDMI-A to HDMI-A)
Mini Flash Drive
MH-2 Mount
Screen Protector
Screen Cloth
Customer Feedback Card
Safety Box
Original: $299.00
-65%$299.00
$104.65
