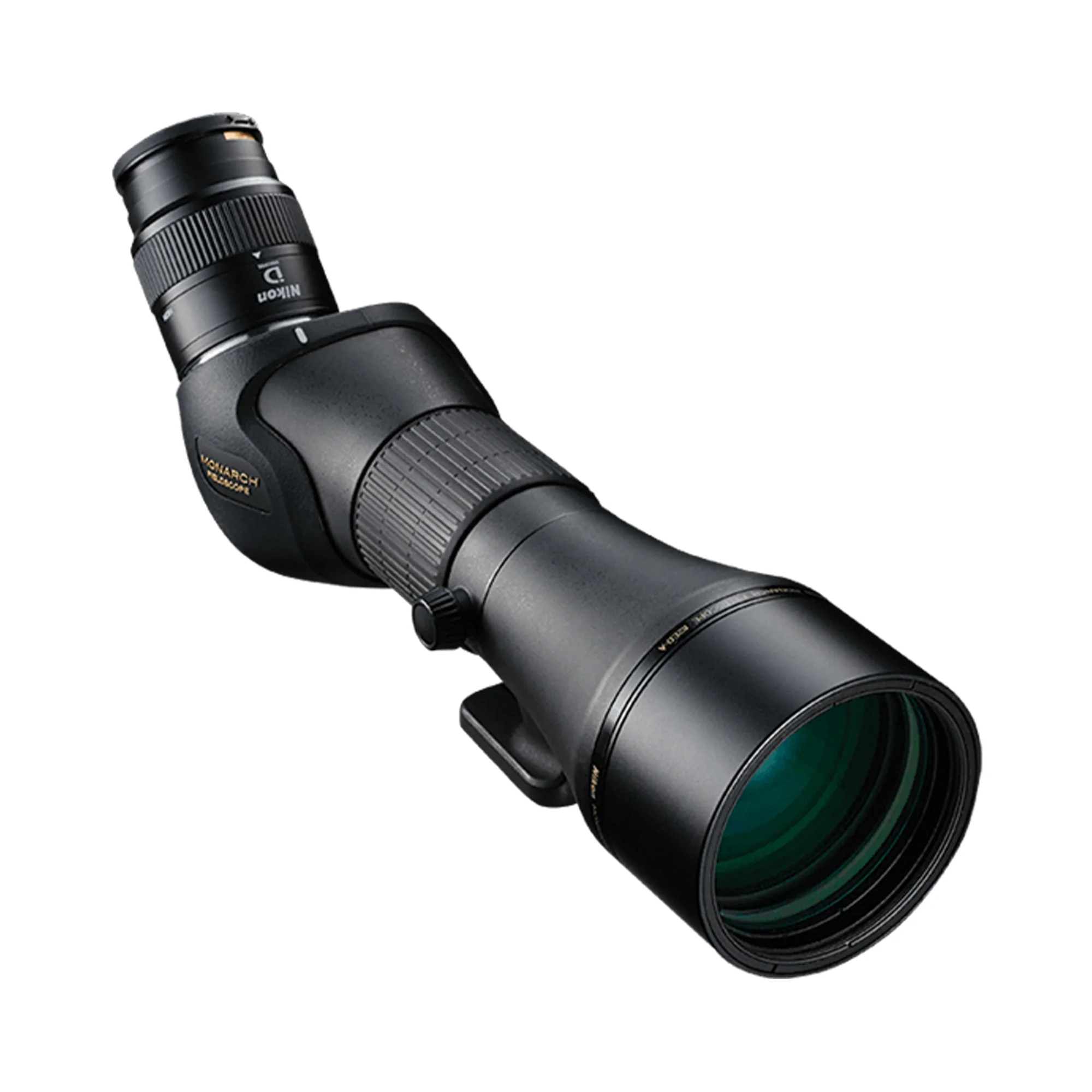

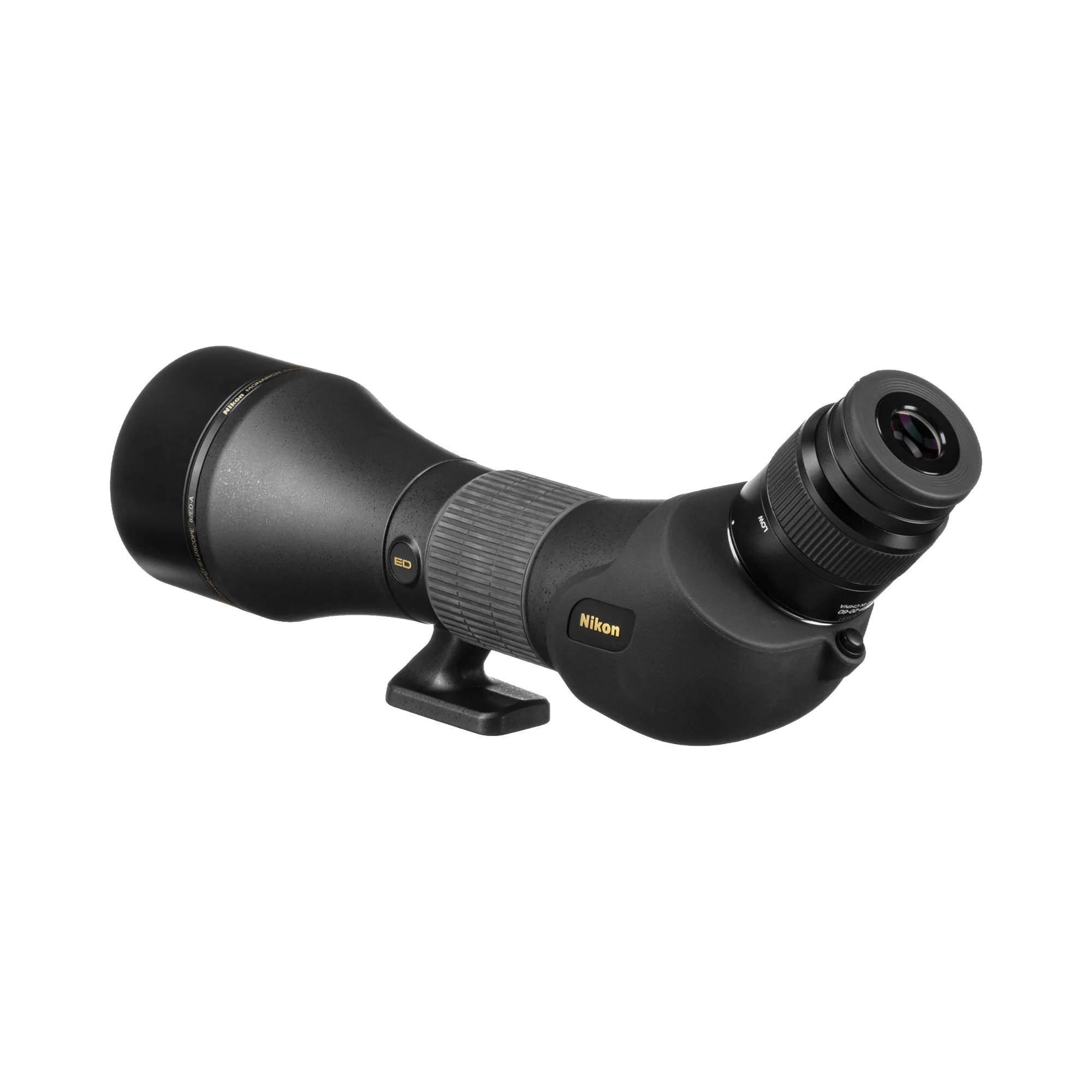

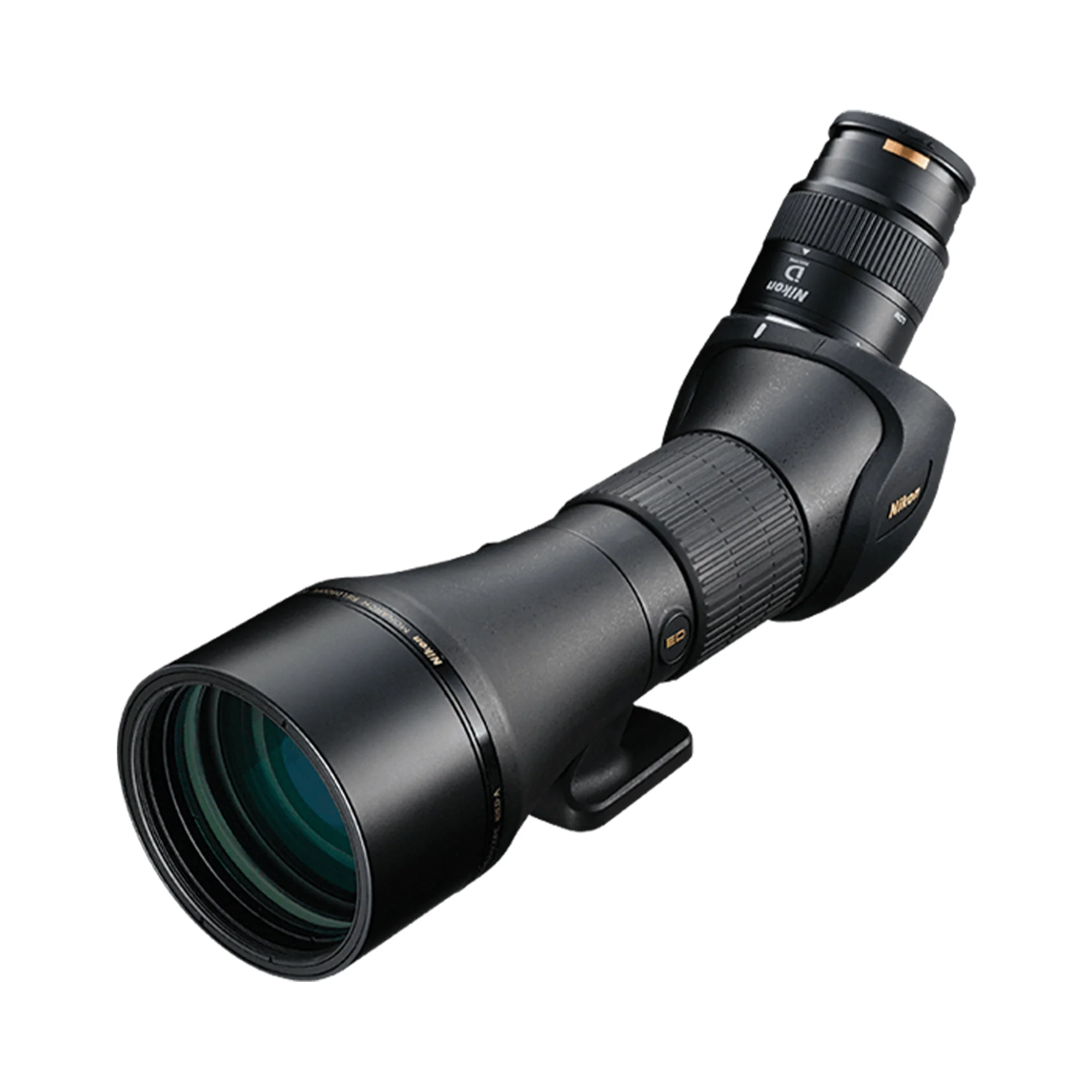

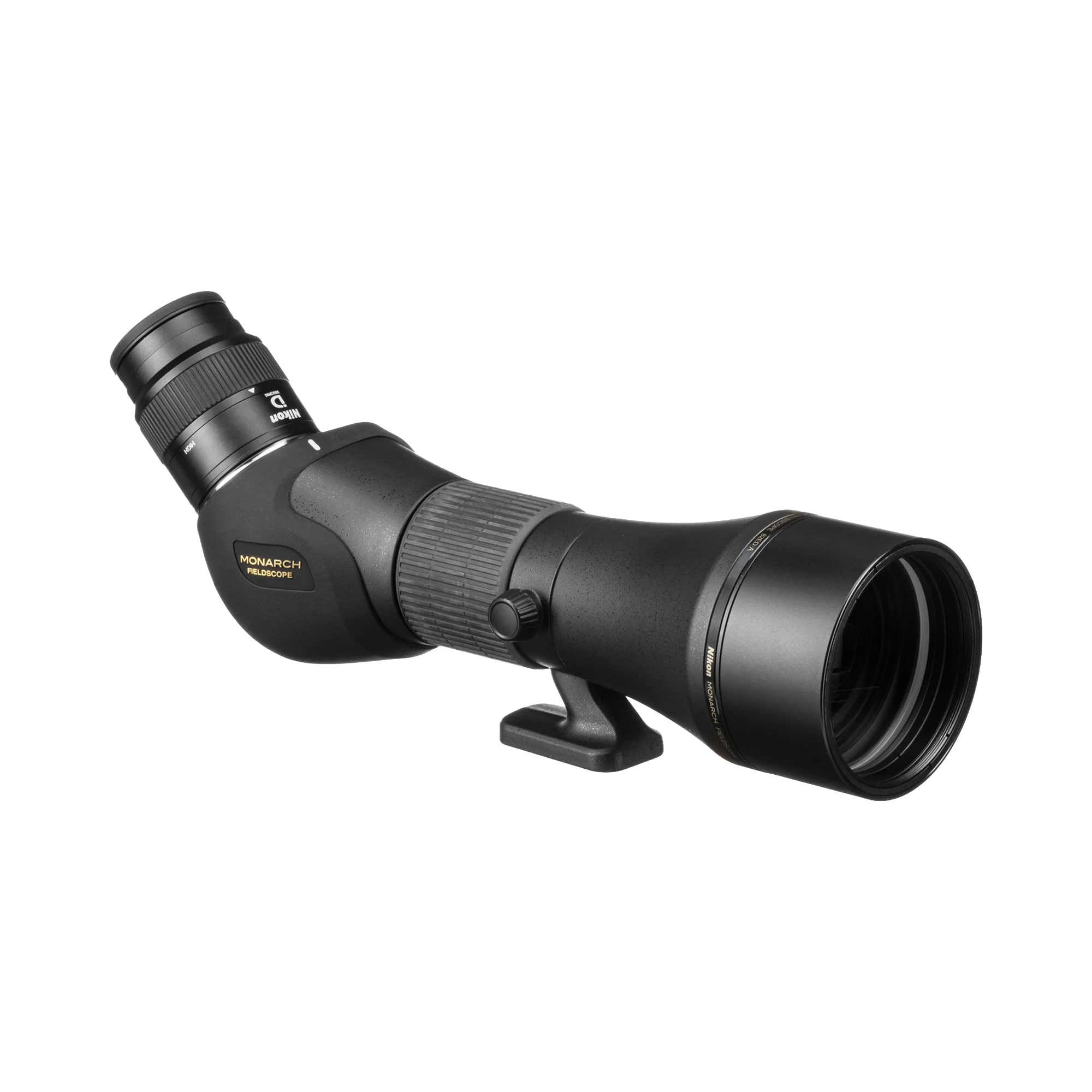

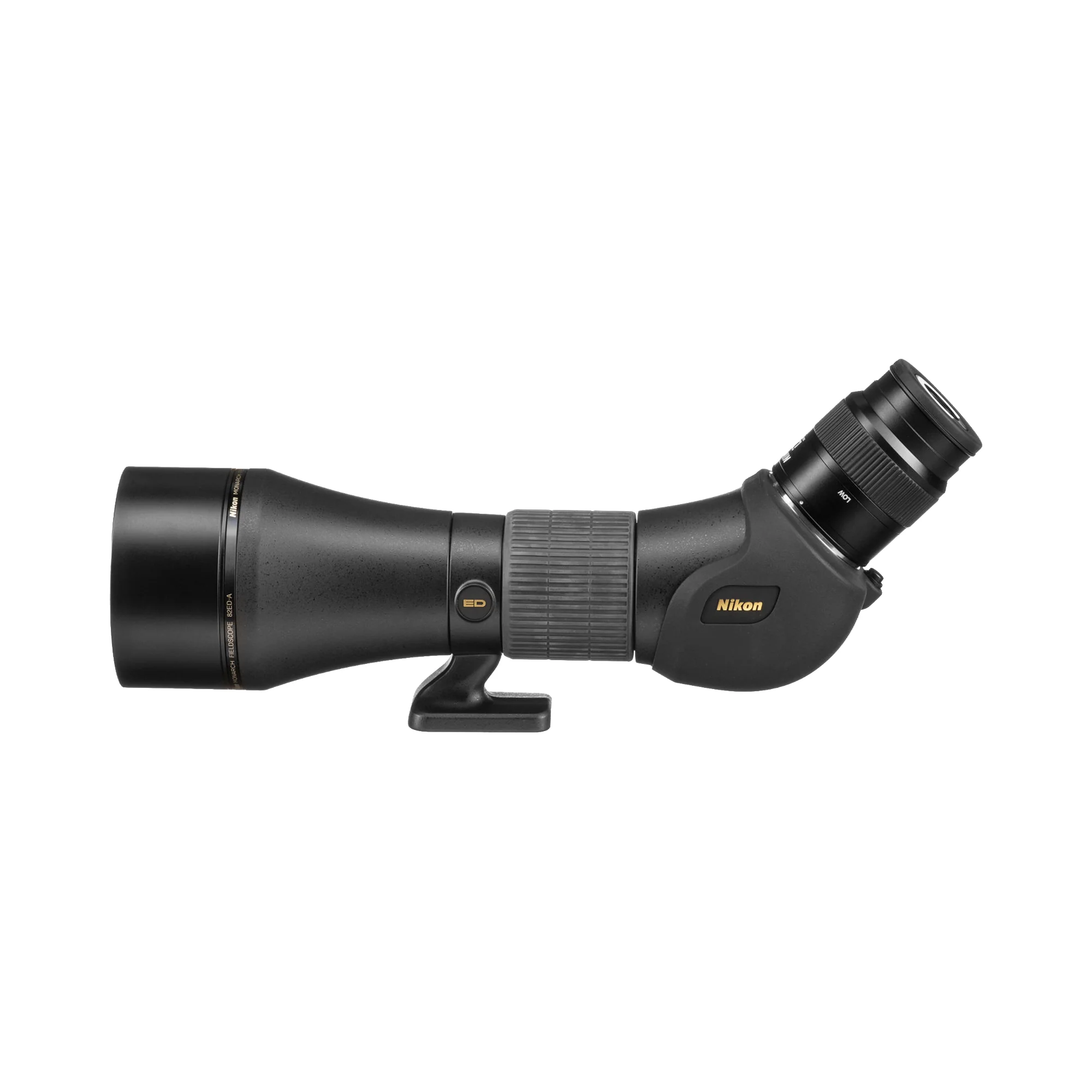

Nikon MONARCH FIELDSCOPE 20-60x82 (82ED-A with MEP-20-60 Eyepiece) Angled Viewing

A Crystal-clear Field of View Attributable to Nikon Sophisticated Optical Technology

True to its legendary name and reputation, the MONARCH Fieldscope brings the excitement of awe-inspiring observation and incredible visual experiences to the eye of its beholder. MONARCH'S Advanced apochromat system of ED glass and proprietary lens and prism coatings delivers true color fidelity with high resolution integrity.

True to its legendary name and reputation, the MONARCH fieldscope pushes long-range viewing capability to an entirely new level for adventurers looking for extreme performance. Delivering a full complement of Nikon optical technologies engineered for an incredibly bright, clear, high resolution view across the entire viewing field, the flagship MONARCH fieldscope makes long days of viewing both satisfying and strain-free aluminum alloy construction, the MONARCH fieldscope assures its owner of a lifetime of a  high performance optical capability, mechanical precision and all-out ruggedness.

Available in 82mm objective models with straight or angled body configurations. The angled model offers comfort for prolonged sessions, while the straight version enables faster sight alignment.

Field Flattener Lens System Delivers Sharp Images all the Way to the Periphery

Nikon’s innovative Field Flattener Lens System ensures absolutely sharp images throughout the entire field of view. Curvature of field is an aberration that occurs when focusing on the center of the viewing field, causing the periphery to go out of focus or vice versa. Nikon’s Field Flattener Lens System provides consistent, edge-to-edge sharpness while compensating astigmatism and coma aberration at the same time, offering an exceptionally sharp, clear image throughout the entire field of view.

Advanced Apochromat Optical System with ED (Extra-low Dispersion) Glass Minimizes Color Fringing to the Furthest Limit of the Visible Light Range

Nikon’s ED (Extra-low Dispersion) glass ensures a contrast-rich and color-faithful field of view. By designing the entire optical system from the ground up, Nikon’s Advanced Apochromat Optical System corrects not only chromatic aberrations of red, blue and green but also violet chromatic aberration to the furthest limits of the visible light range. The result is unimaginably sharp, high-contrast views.

Multilayer Coating for Natural Color Fidelity

Multilayer coating is applied to all lens and prism surfaces, allowing powerful light transmission. The resulting bright field of view delivers true-to-life natural colors. Coating also greatly reduces the flare and ghosting that can occur in backlit situations.

Total Reflection Prism for an Incredibly Bright, Clear View

The straight body MONARCH Fieldscope models utilize a Porro prism design, while the angled-type models employ Nikon's original total reflection prism. Because all prisim reflective surfaces offer complete reflectivity with no loss of light, a bright and vivid view is achieved.

Optimized Focusing System for Fast Focusing

The focus ring of MONARCH Fieldscopes provides different focusing speeds for optimal operation: fine focus adjustment for distant subjects and coarser adjustment for nearby subjects. Effortless, smooth focusing enables you to confidently acquire your target faster and in sharper focus.

Newly Designed MONARCH Fieldscope MEP Eyepieces Deliver High Optical Performance

Nikon has developed eyepieces exclusively for MONARCH Fieldscopes. Each employs a new optical system, and a Field Flattener Lens System that delivers consistent sharpness and clarity across the entire field of view. Engineered to provide a wide field of view, MONARCH eyepieces also provide sufficiently long eye relief. Thus, not only do you enjoy peerless viewing — you can also perform collimate photography with a compact digital camera. When attached to a Fieldscope, each of the three new MEP eyepieces are waterproof*, ensuring safe use even during unexpected weather changes.

*Waterproof: As tested by water equivalent to 5 mm per minute, for a duration of 30 minutes. (NOT designed for underwater usage).

Body Design for Comfortable Observation

The MONARCH Fieldscope body, constructed of robust aluminum alloy, provides durability, reliability and ease of operation. Other ergonomic features such as the specific knurling pattern on the focusing ring enhances its operability. The Type 1 Bayonet Mount with locking system makes eyepiece attachment/detachment easy and secure.

Waterproof performance for inclement weather

All MONARCH Fieldacope models can be used without worrying about changing weather conditions in the natural environment. The MONARCH Fieldscope bodies are waterproof*, sealed with O-rings and packing seals that make them airtight. In addition, the body is filled with nitrogen gas to prevent fog due to sudden temperature changes.

*Waterproof (up to 1 m/3.3 ft for 10 minutes) (NOT designed for underwater usage).

Highlights:

• 82mm objective lens
• Straight or angled body
• Advanced Apochromat Optical System with ED (extra-low dispersion) glass minimizes color fringing to the furthest limit of the visible range
• Field Flattener Lens System delivers sharp images all the way to the periphery
• Multilayer coated lenses and prism for natural color fidelity
• Optimized Focusing System for fast focusing
• Aluminum alloy body for high durability
• Waterproof performance for inclement weather *Waterproof (up to 1m/3.3ft for 10 minutes) (NOT designed for underwater usage)
• Built-in Sliding Sunshade

Features:

• 20-60x Magnification
• 82mm Objective Diameter
• 2.1°@20x Angular Field of View (Real)
• 40.4°@20x Angular Field of View (Apparent)
• 111 ft.@20x FOV @ 1000 yds
• 16.4 ft. Close Focus Distance
• 4.1mm@20x Exit Pupil
• 16.8@20x Relative Brightness
• 16.1mm@20x Eye Relief
• Waterproof/Fogproof
• Angled Body
• ED Glass
• Waterproof
• Digiscoping Adaptable

Fieldscope Eyepiece MEP Series Features:

• All eyepieces feature a Type 1 Bayonet Mount with lock for easy attachment and detachment.
• Field Flattener Lens System provides consistent sharpness across the entire field of view, all the way to the periphery
• Multilayer coating is applied to all lens surfaces for natural and bright images
• Long eye relief design ensures a clear field of view, even for eyeglass wearers
• Turn-and-slide rubber eyecups facilitate easy positioning of the eyes at the correct eyepoint
• Waterproof structure* sealed with O-ring when attached to a MONARCH Fieldscope body (Eyepiece is not waterproof)
  *Equivalent to rainfall of 5mm per minute for a duration of 30 minutes. (NOT designed for underwater usage)
• Compact digital camera COOLPIX series and Advanced Camera Nikon 1 series can be attached using optional digiscoping accessories (Some models are not compatible)

Fieldscope Eyepiece MEP Series Compatibility:

MEP-38W Key Features
38x (When attached to MONARCH Fieldscope 82 series)
30x (When attached to MONARCH Fieldscope 60 series)

• Optimum image quality and outstandingly wide field of view
• Outstandingly wide 66.4° apparent field of view
• Effectively corrects curvature of field and astigmatism, realising uniformly high resolution all the way to the periphery

MEP-20-60 Key Features
20-60x (When attached to MONARCH Fieldscope 82 series)
16-48x (When attached to MONARCH Fieldscope 60 series)

• A versatile 3x zoom eyepiece for a wide range of applications
• Clear and highly uniform sharp image with effectively corrected chromatic aberration, all the way to the periphery throughout the entire zoom range

MEP-30-60W Key Features
30-60x (When attached to MONARCH Fieldscope 82 series)
24-48x (When attached to MONARCH Fieldscope 60 series)

• Superior optical performance eyepiece over the entire 2x zoom range
• Advanced optical design provides a wide field of view while optimally correcting image distortions over the entire zoom range
• Ultra-high optical resolving power as well as a sharp and clear view, throughout the entire zoom range

Size:

Magnification: 20-60x
Objective Lens Diameter: 82mm

Dimensions:

Body Only: 13.15 x 4.41 x 4.25" (LxWxH)

Weight:

Body Only: 3.61 lbs

Materials:

Aluminum Alloy

Manufacturer SKU:

16101

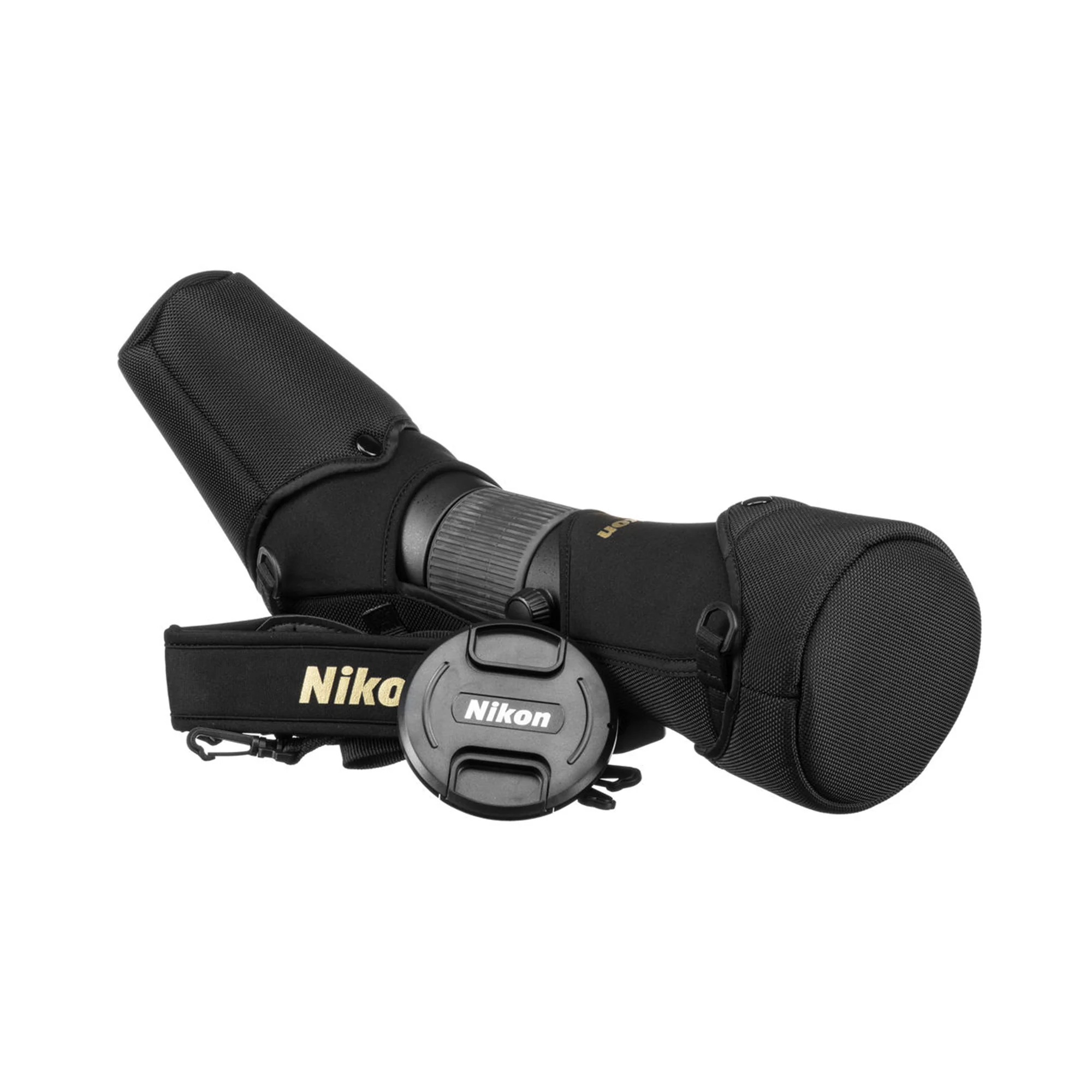

In The Box:

Nikon MONARCH FIELDSCOPE 82ED-A (Angled Viewing)
Nikon MEP 20-60x Eyepiece
Eyepiece Lens Cap
Objective Lens Cap
Mount Cap

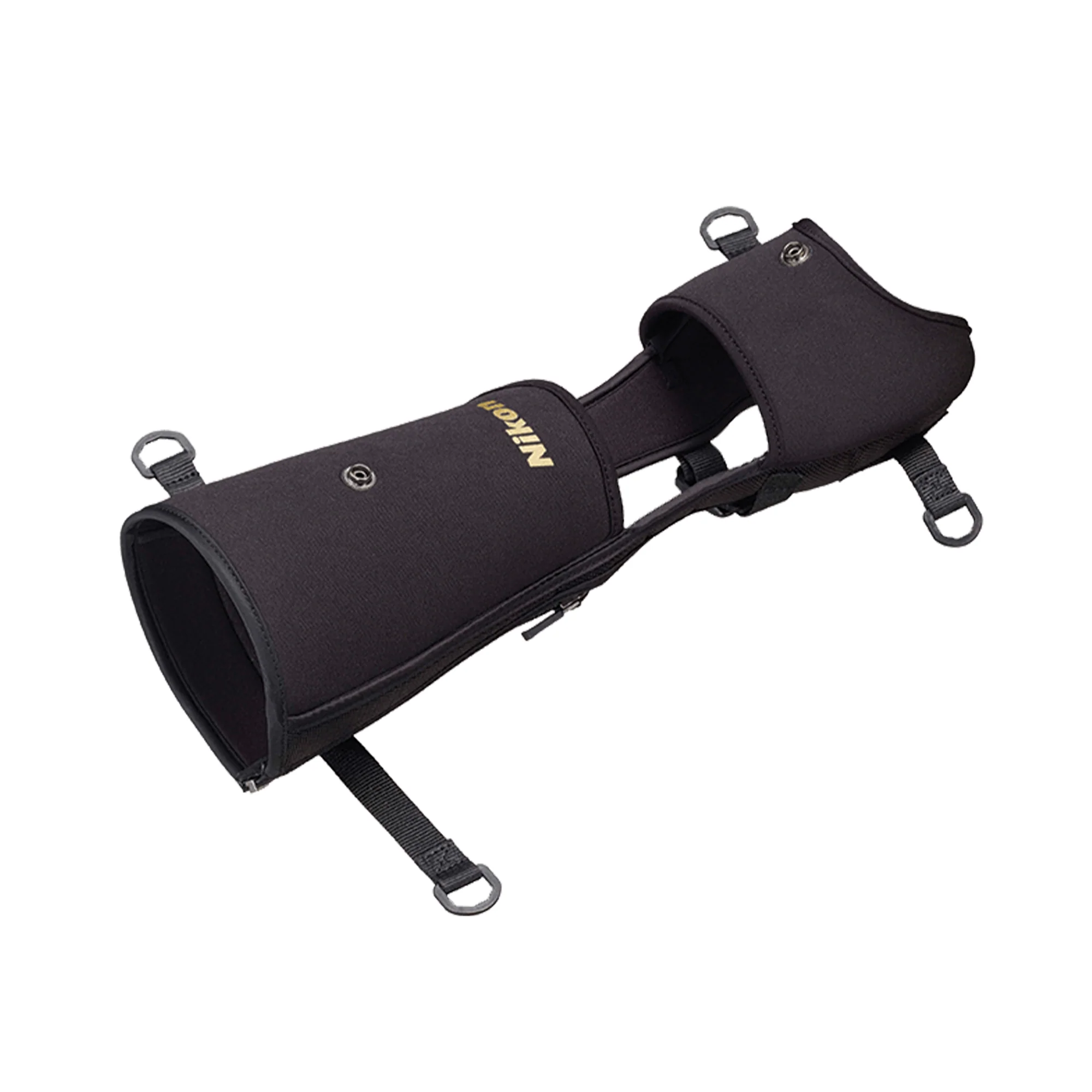

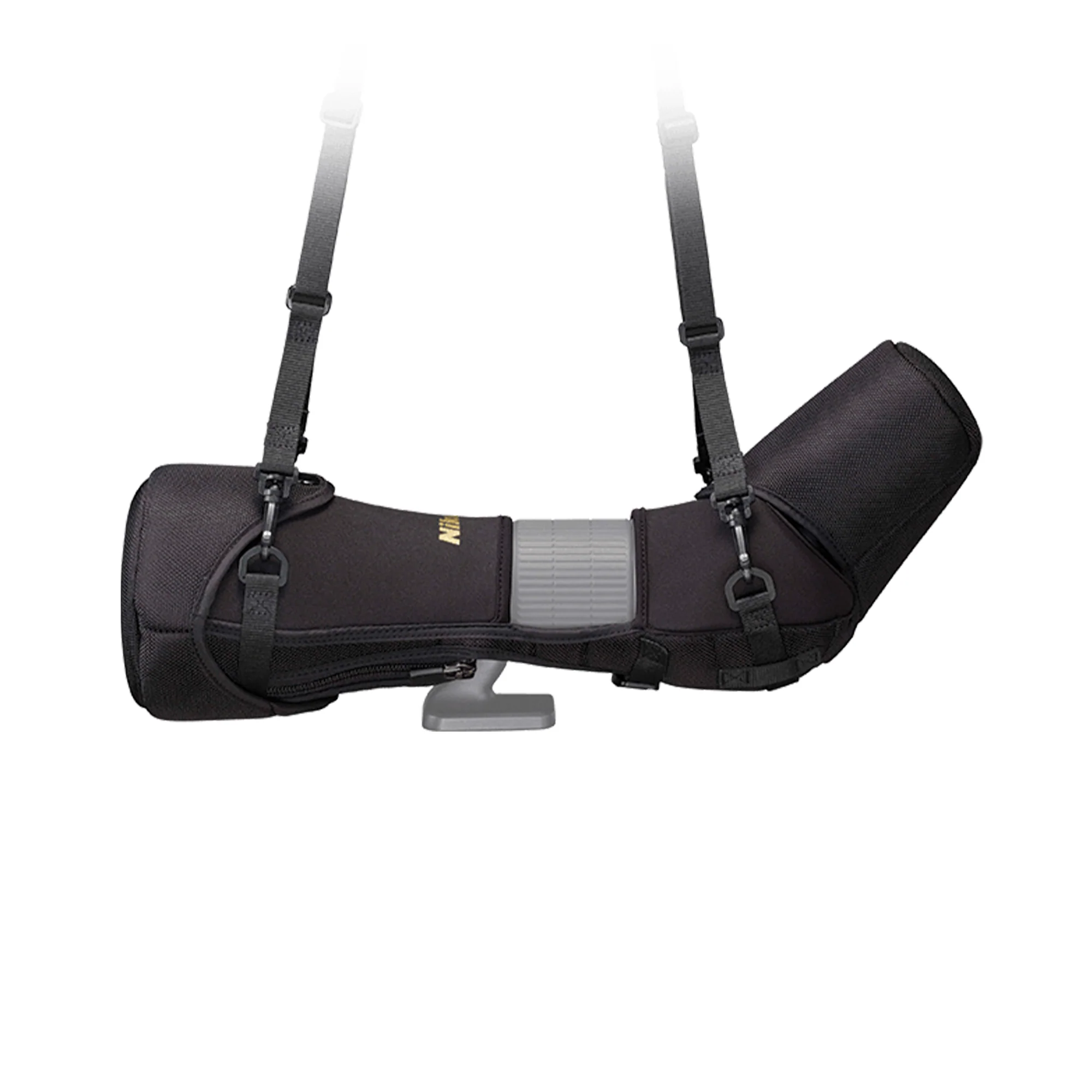

Stay-On Case
Limited Lifetime Manufacturer Warranty
